The Leverless Tiltback Tire Changer Built for the Performance and Low-Profile Wheel Shop

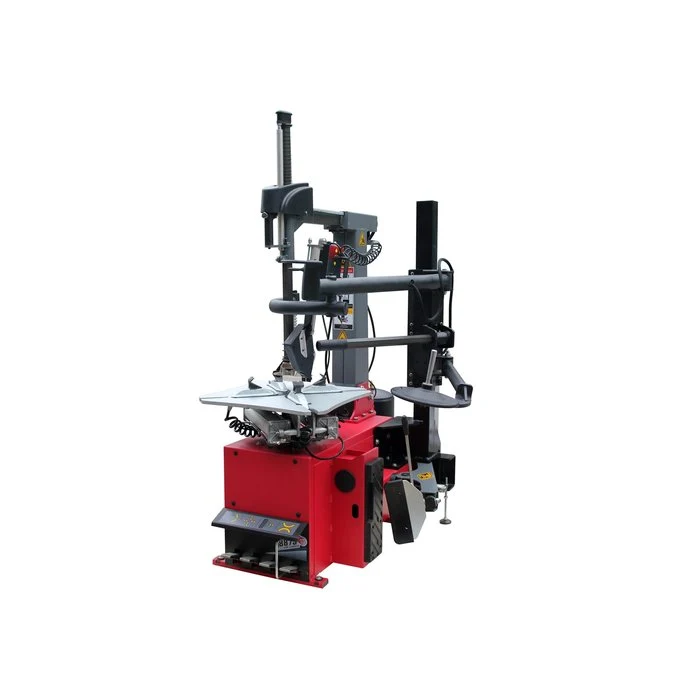

The Tuxedo TC-1300 is a top-of-the-line tiltback press-arm tire changer with a leverless demount tool. This is the machine for a shop that mounts low-profile performance tires, run-flats, oversized truck tires and expensive alloy or forged wheels every day, and wants to eliminate the tire iron entirely.
The leverless demount tool is the headline feature. No tire iron ever touches the wheel, so there is no risk of nicking a rim edge or scratching a matte-black finish. The tiltback column tilts out of the way to load and unload, leaving ample room for the operator, and the three-function assist arm gives you the leverage to walk stiff low-profile sidewalls off the rim without a fight.
A pneumatic locking hex shaft holds the demount head rock-solid. Powerful dual bead-blaster jets are built into all four clamps for consistent bead seating on the toughest tires. Includes inflation hose and air gauge. Runs on a 110V single-phase 15 A outlet. Handles wheels to 41 inch max diameter, 3 to 15 inch wide, inside clamp 13 to 26 in, outside 11 to 24 in. Backed by Tuxedo one-year parts warranty.
Key Features of the TC-1300 That Matter in a Real Tire and Wheel Bay:
– Leverless Demount Design: No tire iron ever touches the wheel. Zero risk of nicking a rim edge or scratching a premium finish.
– Tiltback Column for Loading Access: Tilt-back column swings out of the way to load and unload, leaving ample room for the operator and the wheel.
– Three-Function Assist Arm: Three-function press arm gives you the leverage to walk stiff low-profile sidewalls, run-flats and truck tires off the rim without fighting.
– Pneumatic Locking Hex Shaft: Pneumatic locking hex shaft holds the demount head rock-solid so the leverless tool tracks perfectly around the rim.
– Dual Bead-Blaster Jets on All Four Clamps: Powerful dual bead-blaster jets are built into every clamp for consistent bead seating on stubborn low-profile and run-flat tires.
– Wheels to 41 in Diameter, 3 to 15 in Wide: Inside rim clamp range 13 to 26 inches, outside 11 to 24 inches. Handles the full performance and light-truck range.
– Inflation Hose and Air Gauge Included: Integrated inflation hose and air gauge for accurate final PSI without a separate wall setup.
– Built for the Premium Bay: This is the machine when you cannot afford to scratch a wheel or fight a tire. If the shop lives on performance tires and premium alloys, this is the changer.
TC-1300 Leverless Tiltback Tire Changer Specifications |
|
| Manufacturer | Tuxedo Distributors, LLC |
| Model | TC-1300 |
| Configuration | Tiltback press-arm tire changer with leverless demount tool |
| Primary Application | Performance, low-profile, run-flat and premium-alloy tire service |
| Max Wheel Diameter | 41 in |
| Wheel Width Range | 3 in to 15 in |
| Inside Rim Clamp Range | 13 in to 26 in |
| Outside Rim Clamp Range | 11 in to 24 in |
| Demount Design | Leverless (no tire iron required) |
| Column | Tilt-back |
| Assist Arm | Three-function press arm |
| Mount Shaft | Pneumatic locking hex shaft |
| Bead Seating | Dual bead-blaster jets in all four clamps |
| Inflation | Integrated inflation hose and air gauge |
| Power Supply | 110V, 15 A, 1-Phase |
| Working Air Pressure | 125 psi |
| Shipping Weight | 975 lb |
| Warranty | Tuxedo 1-year (12 months) parts warranty against all product defects |
