Description

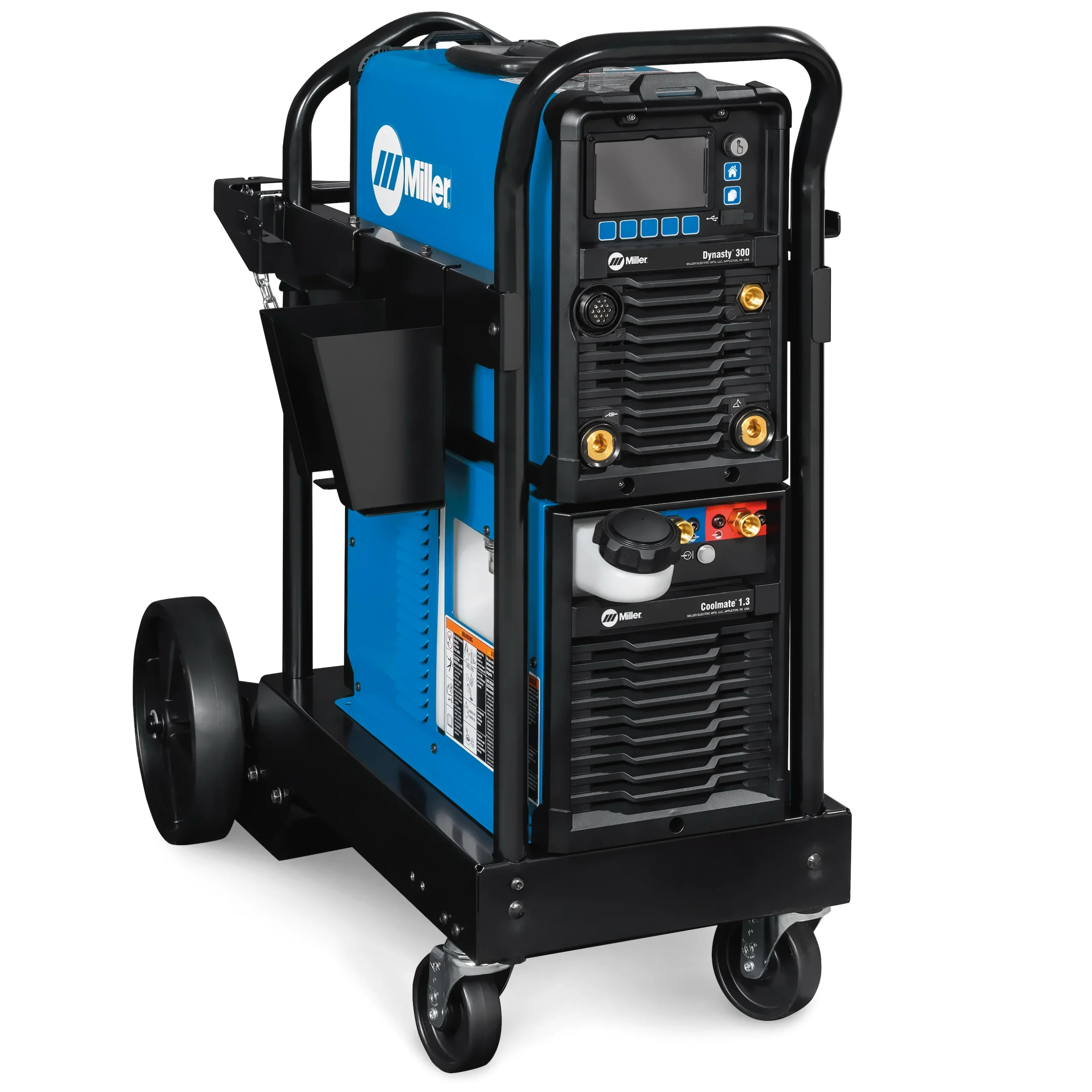

Description With multiprocess capabilities and features like Auto-Line, AC TIG, pulse and high-frequency arc starts, the Dynasty 300 Multiprocess is the most versatile, portable machine in its class. Featuring a TIG pulse and different wave forms. The Pulse TIG is adjustable and can range from 0.1 to 500 pulses per second (pps). AC TIG Frequency has an adjustment range of 20-400Hz for you thin and thick materials. The TIG amperage output and go as low as 2 amps in AC and down to 1 in DC. This package includes the Coolmate 1.3 and a small runner cart. Intuitive Interface LCD Display Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images. Program Memory Allows easy naming, saving and recalling of favorite weld settings. A useful feature if there is more than one person operating the welder. Pro-Set Feature (professional settings) This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters. Locks and Limits Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS). USB Port Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next. Auto-Line Technology For portability and reliability this inverter power supply allows for any single-phase input voltage hookup (208–600 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power. Stick Features Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking. MIG CV output of the power source gives this unit MIG process capabilities when paired with an ArcReach® 8 or 12 (or other voltage-sensing feeder). Blue Lightning™ High-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters. Cooler-On-Demand™ Feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler. Fan-On-Demand™ Cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine. Processes AC/DC TIG (GTAW) Pulsed TIG (GTAW-P) Stick (SMAW) Air Carbon Arc (CAC-A) MIG (GMAW) Flux-Cored (FCAW) Applications Aerospace Heavy Fabrication Precision Fabrication Aluminum Ship Repair Pipe and Tube Fabrication Anodized Aluminum Fabrication Included With Product Dynasty® 300 8 ft. (2.4 m.) Primary Cord (no plug) Adjustable Shoulder Strap (2) 50 mm. Dinse-style Connectors (2) Dinse/Tweco Adapters 8′ (2.4m) Weld Cable with Tweco Style Connectors to Power Feeder Coolmate 1.3 Small Runner Cart Specifications Click to view the entire spec sheet. Accessories
