Description

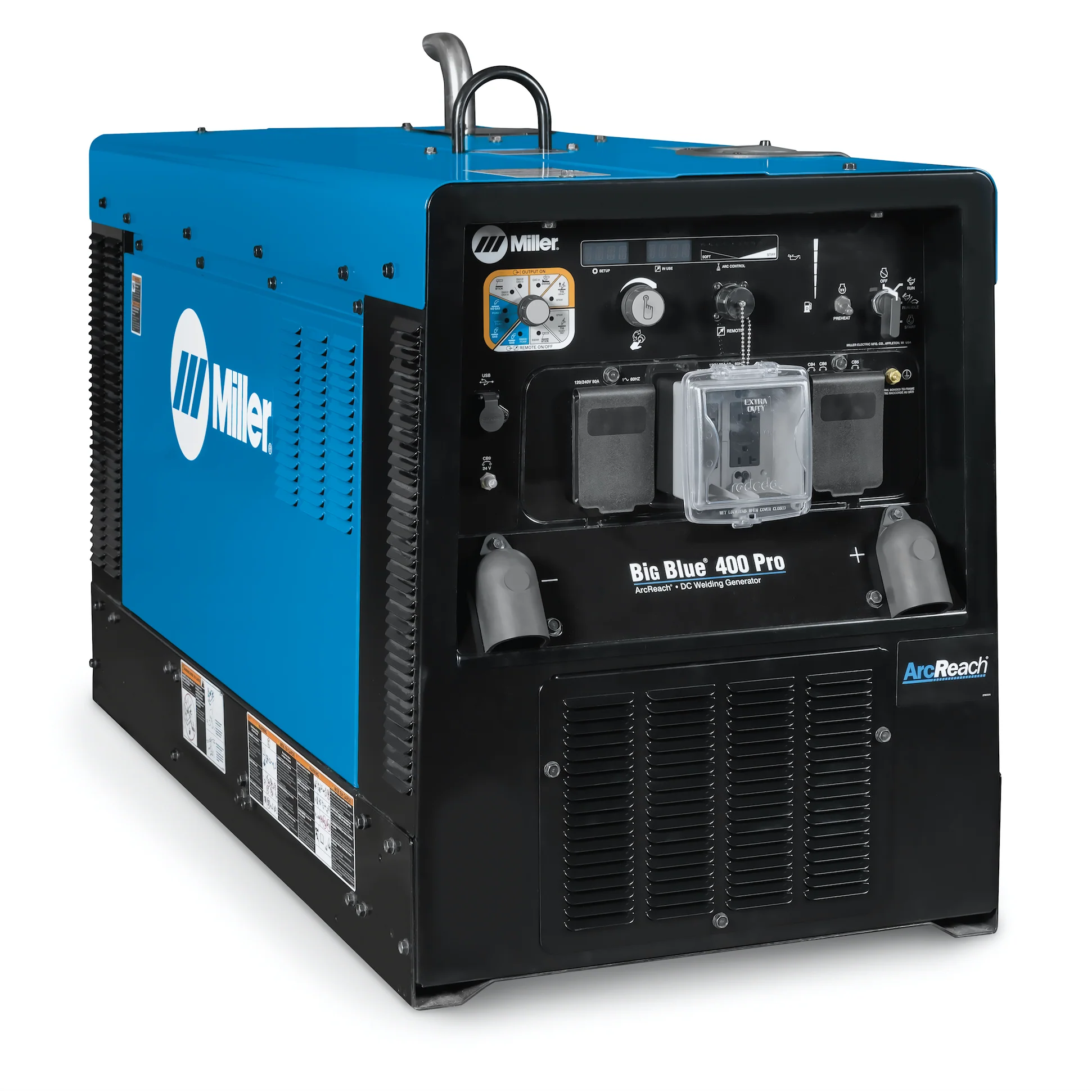

Miller Big Blue 400 Pro – Kubota Diesel with ArcReach Technology

Designed for professional welders who demand reliability, fuel efficiency, easy operation, and excellent arc performance, the Miller Big Blue 400 Pro is a heavy-duty engine-driven welder/generator built for demanding field applications.

Powered by the proven Kubota V1505 industrial diesel engine and equipped with Miller’s ArcReach technology, the Big Blue 400 Pro provides professional operators with convenient remote control of welding parameters while helping reduce unnecessary trips back to the power source.

Heavy-Duty Kubota Diesel Engine

The Kubota V1505 low-speed industrial diesel engine is designed for demanding commercial and industrial applications. Its low-speed operation provides dependable performance, excellent fuel economy, and long service life for professionals who depend on their equipment every day.

ArcReach Technology

Miller’s exclusive ArcReach technology communicates process adjustment commands through the existing weld cables. When paired with compatible ArcReach accessories, operators can conveniently adjust amperage and voltage closer to the weld rather than repeatedly returning to the power source.

• Remote Parameter Adjustment: Control welding amperage and voltage closer to the work area with compatible ArcReach accessories.
• Auto-Process Select: Automatically detects compatible ArcReach accessories and selects the appropriate process based on the connection and polarity.
• Control Panel Lockout: Helps prevent accidental changes at the power source while an ArcReach accessory is controlling welding parameters.
• Cross-Platform Compatibility: Compatible ArcReach accessories can also work with select Miller XMT, Dimension, and PipeWorx 350 FieldPro power sources.
• Reverse Compatibility: ArcReach-equipped power sources can also operate with non-ArcReach accessories, although full ArcReach functionality requires a complete ArcReach system.

Professional Welding Performance

• Dynamic DIG: Automatically adjusts short-clearing current to provide a smoother, more consistent arc based on the application, material, fit-up, and operator technique.
• Adaptive Hot Start: Helps provide reliable Stick electrode starts while reducing the possibility of electrode sticking and weld inclusions.
• Infinite Arc Control: Available in Stick and Wire modes for precise adjustment when welding challenging materials or working out of position.
• Lift-Arc TIG: Provides controlled TIG arc starting while minimizing the risk of electrode and workpiece contamination without requiring high frequency.
• Low OCV Stick (VRD): When activated, reduces open-circuit voltage to approximately 15 volts while the power source is not welding, providing an additional operator-safety feature without compromising arc starts.

Built for Productivity

ArcReach technology can help increase arc-on time by reducing the need for operators to repeatedly travel between the welding location and power source to change settings. This can also reduce exposure to common jobsite slip, trip, and fall hazards.

Smart Controls & Diagnostics

• Digital Meters with SunVision: Welding parameters remain easier to read from multiple viewing angles, including in direct sunlight.
• Industrial USB Port: Allows software updates and downloading of machine log files containing diagnostics and operating statistics.
• Auto Remote Sense: Automatically detects when a remote control is connected to the 14-pin receptacle.
• Simple-to-Set Controls: Straightforward controls allow the operator to select the welding process and settings without complicated setup procedures.

Durable Jobsite Construction

• HD Powder-Coat Protection: Painted sheet-metal components receive a zinc-rich primer pretreatment to provide additional protection against rust and corrosion.
• Quiet Operation: Designed to reduce jobsite noise, helping improve communication around the work area.
• Automatic Idle: Helps reduce unnecessary engine speed when full output is not required.
• Thermal Overload Protection: Provides additional protection for the welding power source during demanding operation.
• 120V Engine Block Heater: Included to assist with cold-weather engine starting.
• Output Contactor Control: Included as a standard machine feature.

ArcReach Heater Compatible

The Big Blue 400 Pro supports the ArcReach Heater system for compatible field preheating and bakeout applications. Induction heating allows workpieces to be heated without conventional flame-based heating methods, supporting applications up to approximately 600°F (315°C).

Professional Engine-Driven Welding Solution

With its Kubota industrial diesel engine, ArcReach capability, advanced welding controls, rugged construction, and professional-grade features, the Miller Big Blue 400 Pro is built for demanding fabrication, construction, maintenance, pipeline, and field-welding applications where dependable performance matters.
