Description

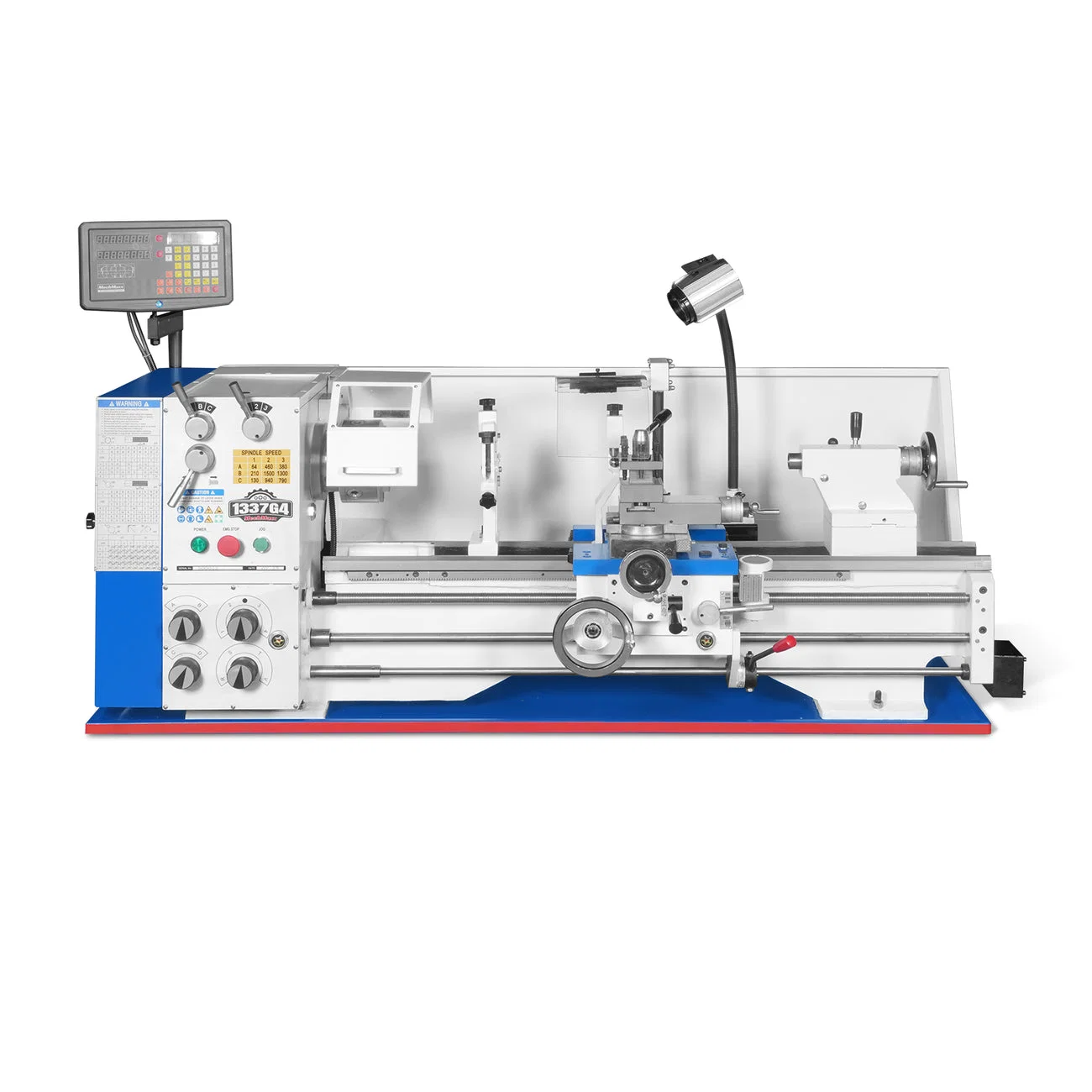

13″ x 37″ Industrial Metal Lathe – Precision Bench Metalworking Machine with 4-Axis Slide (Model 1337G4) Product Description The MechMaxx 13″ x 37″ Industrial Metal Lathe (Model 1337G4) is a heavy-duty precision machining solution designed for fabrication shops, machine shops, and serious workshop environments. Powered by a 1.5 HP (1100W) motor and operating on 220V single-phase power, this lathe provides consistent cutting power and smooth operation for a wide range of metalworking tasks. One of the standout features of the 1337G4 is its exclusive four-axis sliding system, allowing machinists to perform complex cuts and precise positioning with improved flexibility. The 13″ swing over bed, 19.1″ swing over gap, and 37″ distance between centers provide ample capacity for machining longer shafts and larger components. The machine features a 1.57″ spindle bore and D1-4 cam-lock spindle mount, ensuring secure workholding and support for larger stock materials. With 9 spindle speed ranges from 64–1500 RPM, operators can easily select the optimal cutting speed for various metals and machining applications. Built for Precision Machining This industrial metal lathe is engineered to provide versatile machining control and reliable performance for demanding turning and threading operations. Exclusive four-axis slide system for enhanced machining flexibility 9 spindle speed ranges from 64–1500 RPM Large 1.57″ spindle bore for machining thicker materials D1-4 cam-lock spindle mount for secure chuck installation Wide threading capability for inch and metric thread cutting Long carriage travel for machining extended workpieces These features allow machinists to perform turning, threading, facing, and finishing operations with improved accuracy and efficiency. Durable & Reliable Construction The 1337G4 lathe is constructed with a rigid cast iron frame and precision components designed to withstand demanding machining conditions. The wide bed and heavy-duty structure minimize vibration during cutting operations while maintaining consistent machining accuracy. Heavy-duty cast iron construction for long-term durability Wide 7.12″ bed for improved machining stability Precision sliding carriage and cross slide system MT5 spindle taper for versatile tooling compatibility Quick-adjust tailstock with MT3 taper This durable design ensures dependable performance for fabrication shops, industrial workshops, and professional machining environments. Technical Specifications Motor: 1.5 HP (1100W), 220V, Single Phase Swing Over Bed: 13″ (330 mm) Swing Over Cross Slide: 8.46″ (215 mm) Swing Over Gap: 19.09″ (485 mm) Distance Between Centers: 37″ (940 mm) Bed Width: 7.12″ (181 mm) Spindle Bore: 1.57″ (40 mm) Spindle Mount: Cam-Lock Mechanism Spindle Type: D1-4 Spindle Taper: MT5 Tailstock Taper: MT3 Tailstock Travel: 3.93″ (100 mm) Cross Slide Travel: 5.9″ (150 mm) Compound Slide Travel: 3.54″ (90 mm) Carriage Travel: 33.46″ (850 mm) Spindle Speed Range: 64–1500 RPM Number of Speed Ranges: 9 Leadscrew Size: 22 mm / 7/8″ – 8 TPI Inch Threading: 4–56 TPI Metric Threading: 0.4–7 mm Maximum Tool Bit Size: 14 × 14 mm Coolant System: No Shipping Dimensions: 70″ × 29.5″ × 29.9″ Shipping Weight: 1320.8 lbs
