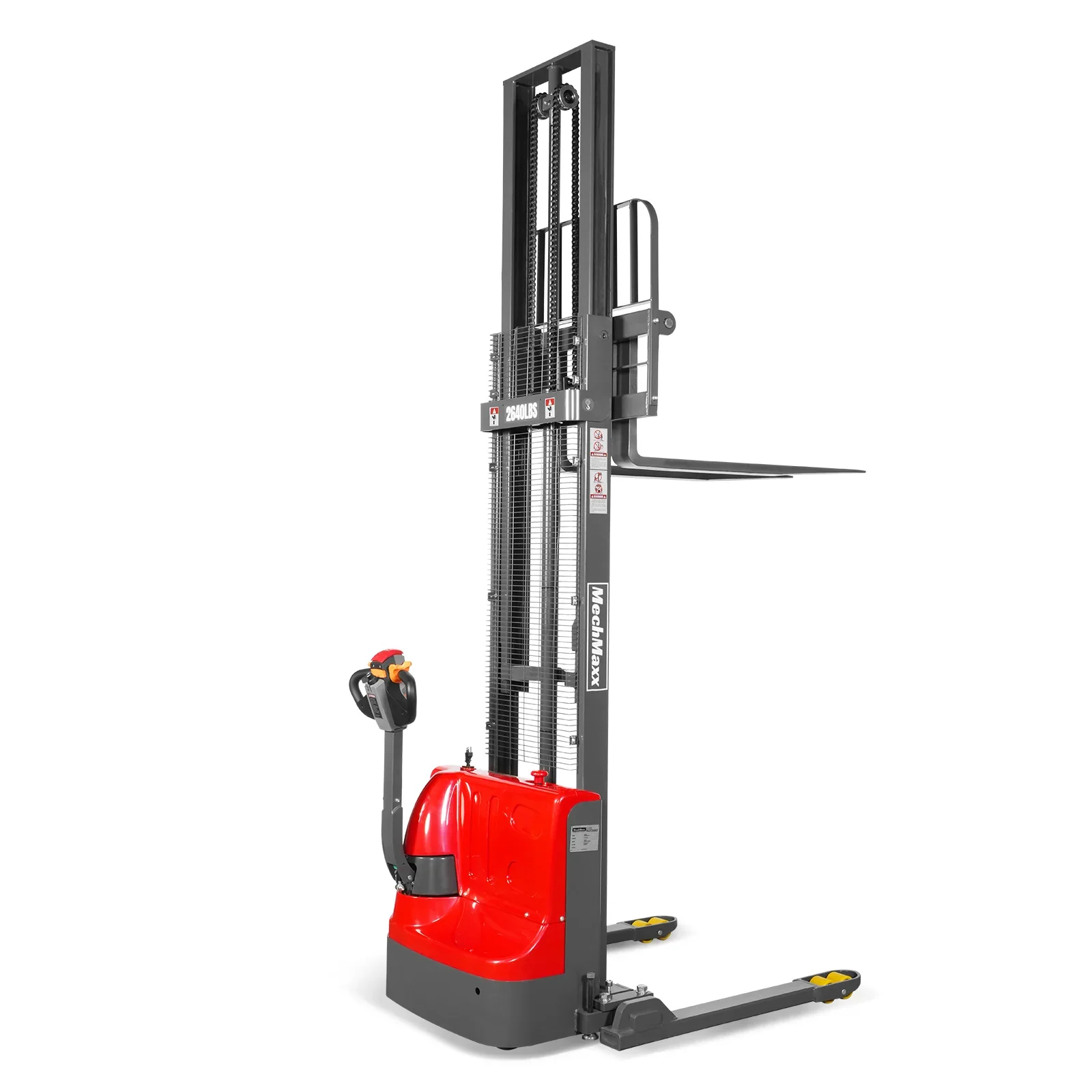

MechMaxx 2640lbs Electric Straddle Stacker, 118″ Lift, Adjustable Legs & Forks, F26-118SLA

Description

Product Overview The F26-118SLA is a walkie straddle stacker that puts 2,640 lb loads up to 118 in. Its 24V/100Ah maintenance-free AGM battery is built for long runtime, recharging on a 24V/10A built-in charger. Adjustable straddle legs and forks handle a wide mix of pallet sizes, backed by a 2.2 kW lift motor and Curtis controller. 2,640 lb capacity to a 118 in max lift height (2.4 in minimum) Long-runtime 24V/100Ah maintenance-free AGM battery, 24V/10A built-in charger Adjustable straddle legs (35.4 to 51.2 in I.D.) and forks (8.3 to 33.5 in) 2.2 kW lift motor, 0.75 kW DC drive motor, Curtis controller Lift speed 18.1/26.8 fpm; travel 2.5/2.6 mph 53 in turning radius; electromagnetic service brake Product Features American Curtis Travel Controller Industry-proven precision and reliability. Delivers smooth acceleration, responsive control, and high energy efficiency for demanding material handling. Maintenance-free AGM Battery Equipped with a built-in sealed AGM battery that delivers consistent, maintenance-free power for frequent and demanding use. Built-in Charger & Battery Gauge Built-in charger enables fast and convenient on-board charging. Equipped with a battery gauge and hour meter to monitor status. Ergonomic Integrated Handle Ergonomic integrated handle includes dual butterfly travel control, electric lifting and lowering buttons, and turtle-speed mode. Gas Spring Support Design Integrated gas spring support absorbs shocks smoothly, reducing vibration and protecting internal components while minimizing maintenance. Removable Load Backrest Load backrest prevents goods from falling backward for improved safety. Removable backrest offers added flexibility, enhancing visibility and versatility. Robust Frame Design Double-frame design with reinforced stiffening bars enhances structural integrity. Constructed from premium steel, ensuring stable lifting performance. Explosion-proof Valve Equipped with an explosion-proof valve to prevent sudden lowering of the forks in case of hydraulic failure, ensuring operator and load safety. Lift Limit Switch Electronic lift limit switch protects both load and machine. Automatically stops lifting at maximum height to prevent hydraulic strain and mechanical damage. VideoSpecifications Load Capacity 2640 lbs Turing Radius 53 in Operator Position Walkie Lifting Speed (laden/unladen) 18.1/26.8 fpm Tire Type Polyurethane Lowering Speed (laden/unladen) 22/19.3 fpm Overall Length 70 in Driving Speed (laden/unladen) 2.5/2.6 mph Max Lift Height 118 in Max Gradeability (laden/unladen) 3/8% Min Lift Height 2.4 in Service Brake electromagnetic Mast Height (raised) 140 in Battery 24V/100Ah Maintenance-free AGM Battery Mast Height (lowered) 82 in Charger 24V/10A Built-in Straddle Leg Width (I.D.) 35.4 – 51.2 in Controller Brand Curtis Straddle Leg Width (O.D.) 43.3 – 59 in Drive Motor 0.75 kW DC Load Center 23.6 in Lift Motor 2.2 kW Fork Overall Width 8.3 – 33.5 in Packing Size (LxWxH) 39 x 37 x 87 in Fork Size (TxWxL) 1.4 x 4 x 45.3 in Weight (N.W/G.W.) 1355/1510 lbs WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
