Description

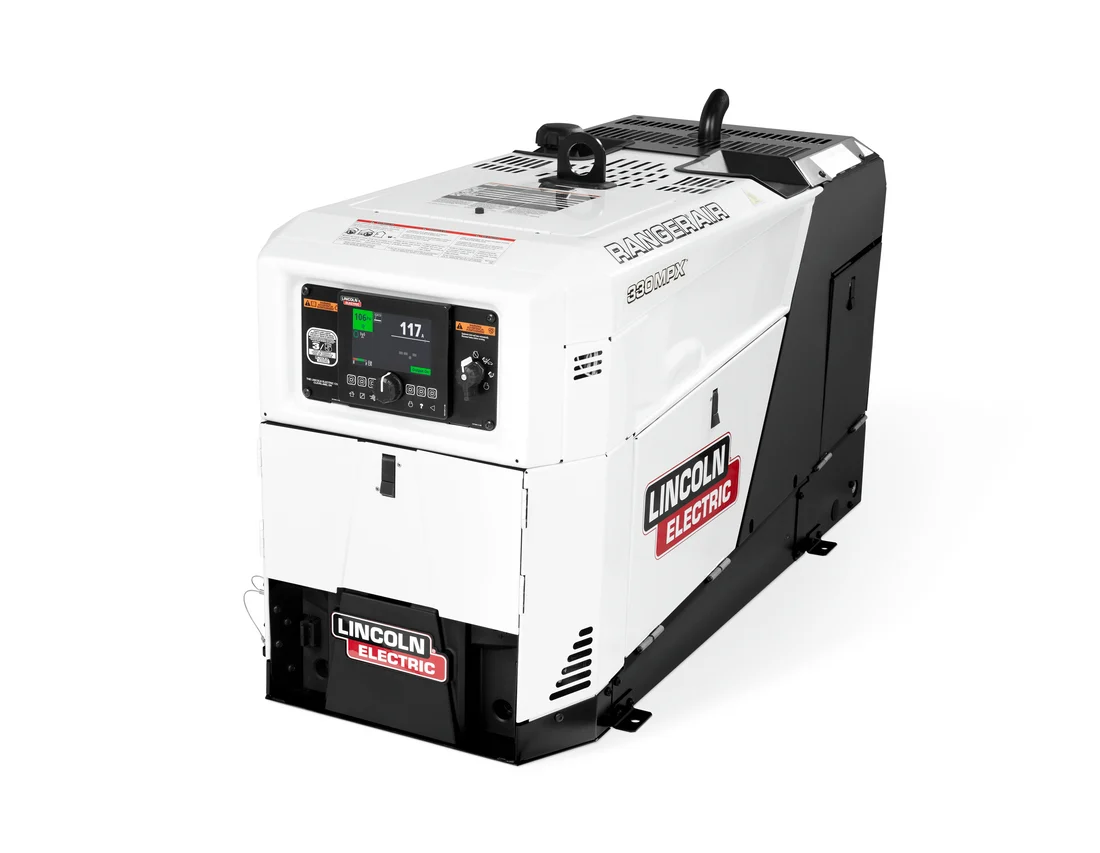

Description Introducing the Ranger 330MPX, a smaller, smarter, and quieter way is here with the new Ranger 330MPX welder/generator. This modern machine leads the way for job site innovation with a digital user interface, performance-boosting technology, and clean AC generator power. AIR COMPRESSOR The Vanair® rotary screw air compressor delivers instant 40CFM @150 PSI, generating up to 30% more air power compared to other machines in its class. Operators can power large tools – up to a 1-inch impact wrench, and inflate tires faster to complete jobs in less time. GENERATOR 10KW of clean continuous AC generator power accommodates a variety of tools and equipment, allows you to power tools while welding and with less than 5% total harmonic distortion (THD) you can operate sensitive electronics, like laptops. BATTERY JUMP ASSIST AND BATTERY CHARGE Capability to jump and charge 12V and 24V batteries on the jobsite. Get equipment started and keep productivity high with 330A for cold cranking assist. MULTI-PROCESS WELDER Stick, TIG, MIG, Flux-Cored and direct connect spool gun with a 330A/28V/100% duty cycle so the operator can tackle a variety of applications. ADVANCED WELD MODES Gouge, pipe, pulsed TIG and pulsed spool gun modes give the operator more control and flexibility when taking on welding jobs. RANGER AIR 330MPX REMOTE PANELS Increase jobsite safety and efficiency by limiting climbing in and out of the truck bed. With simple and easy installation, operators can choose between three remote panel options or use the machine standalone, offering more flexibility compared to other machines in its class. Amperage Output – 330A Duty Cycle – 100% @ 330A DC CC // 100% @ 312A DC CV Generator Output – 11,500 w Peak // 10,000 w Continuous Dimensions – 26″ x 20″ x 48″ (HxWxL) Machine Weight: 565lbs Included with Product Power Supply Only Specifications Click to view the Spec Sheet. Accessories
