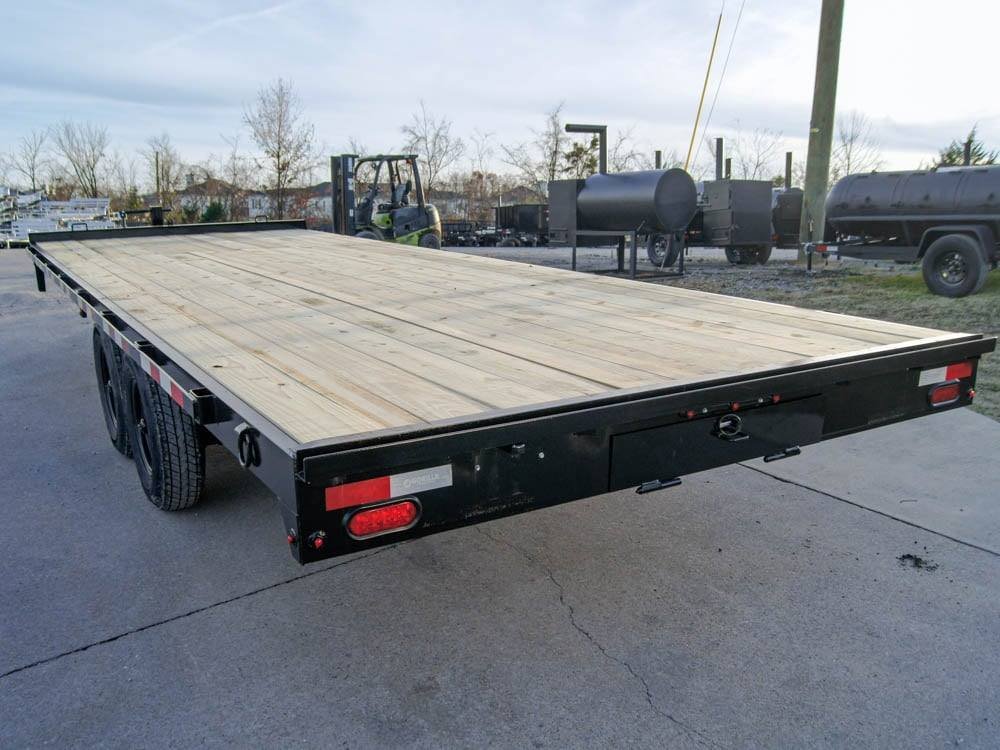

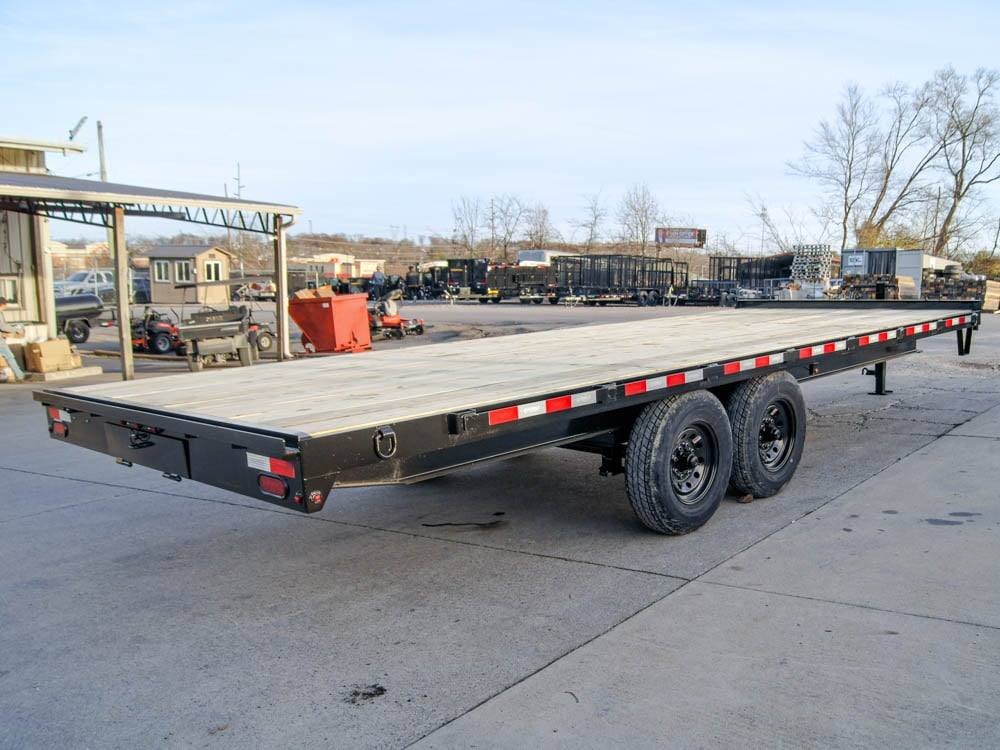

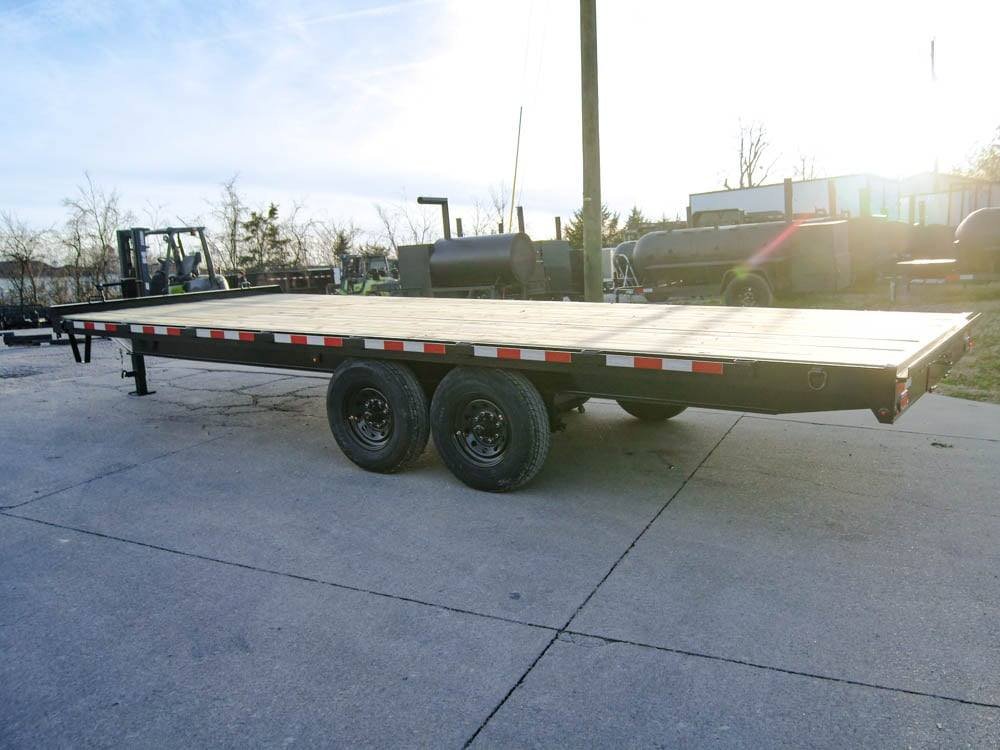

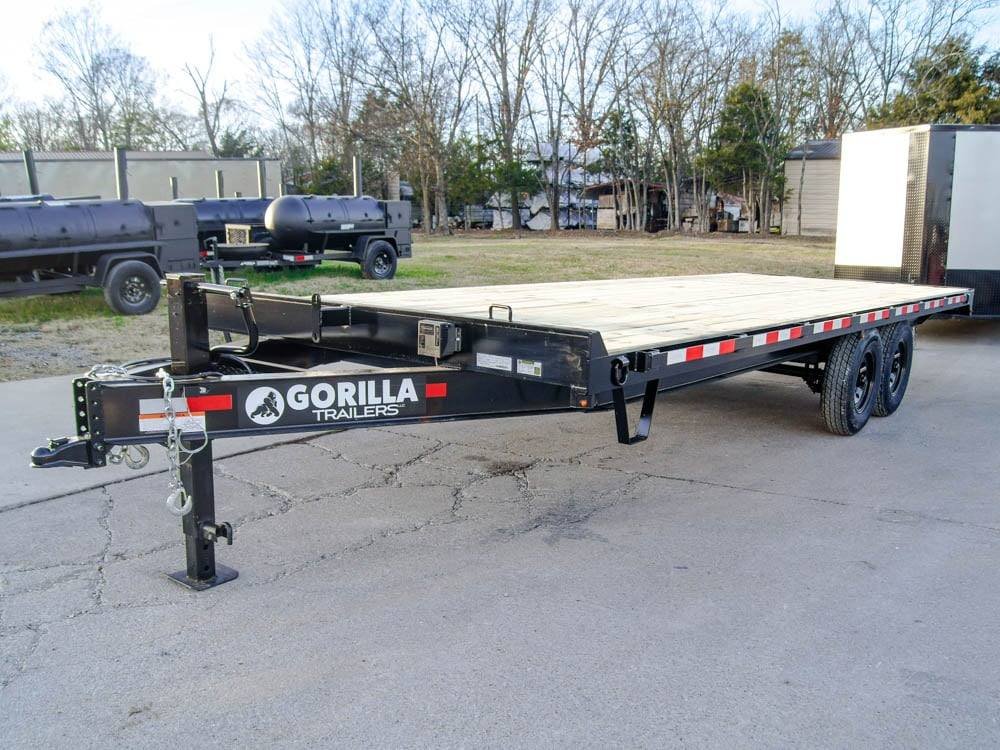

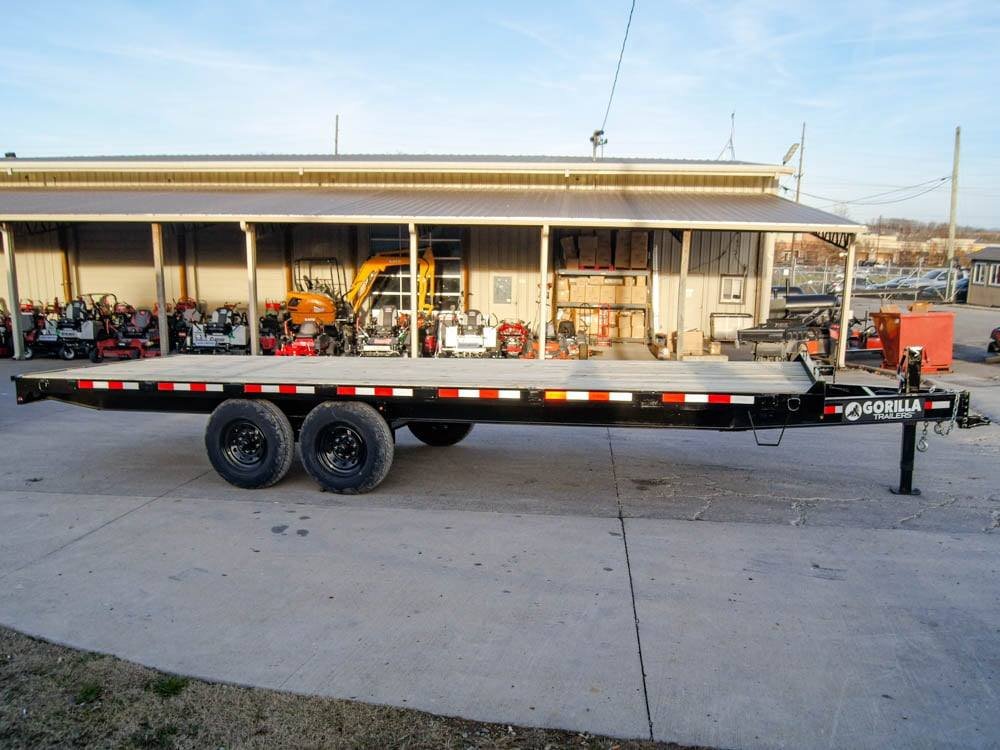

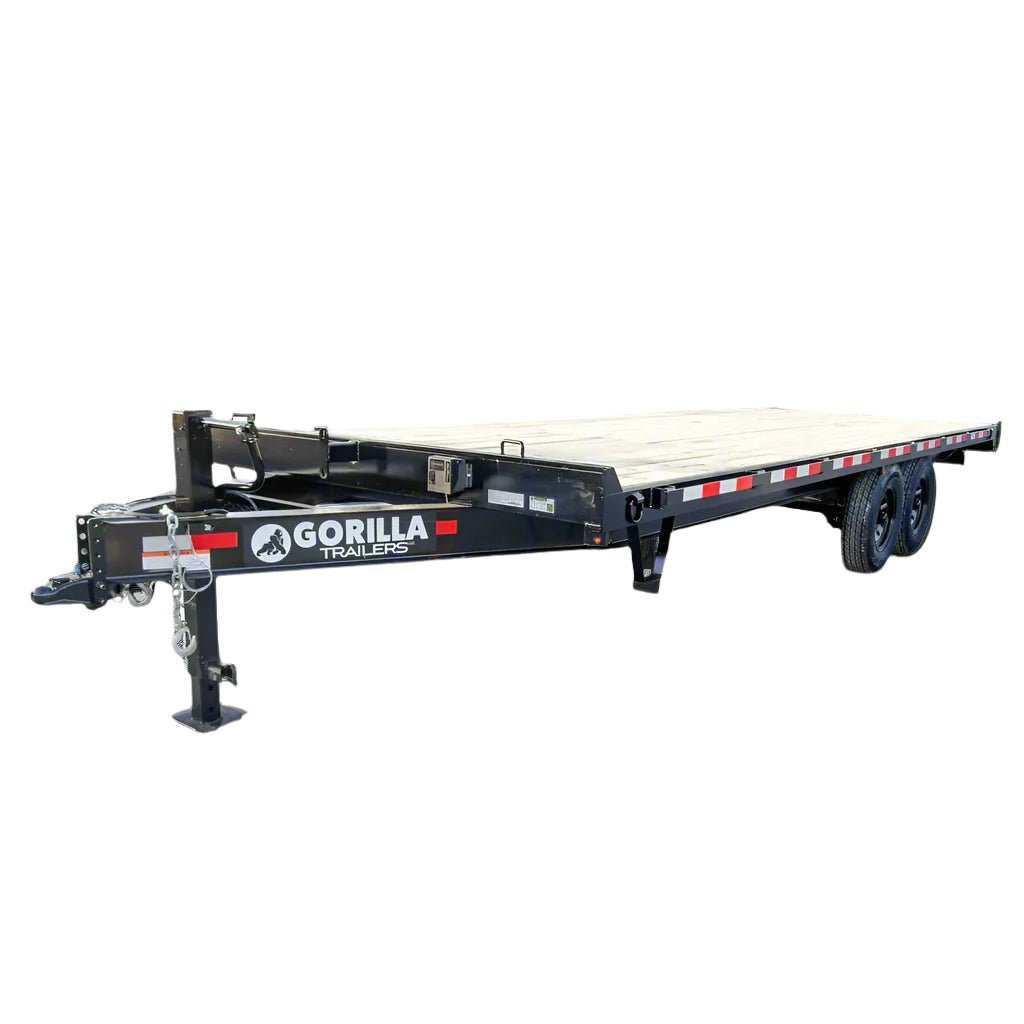

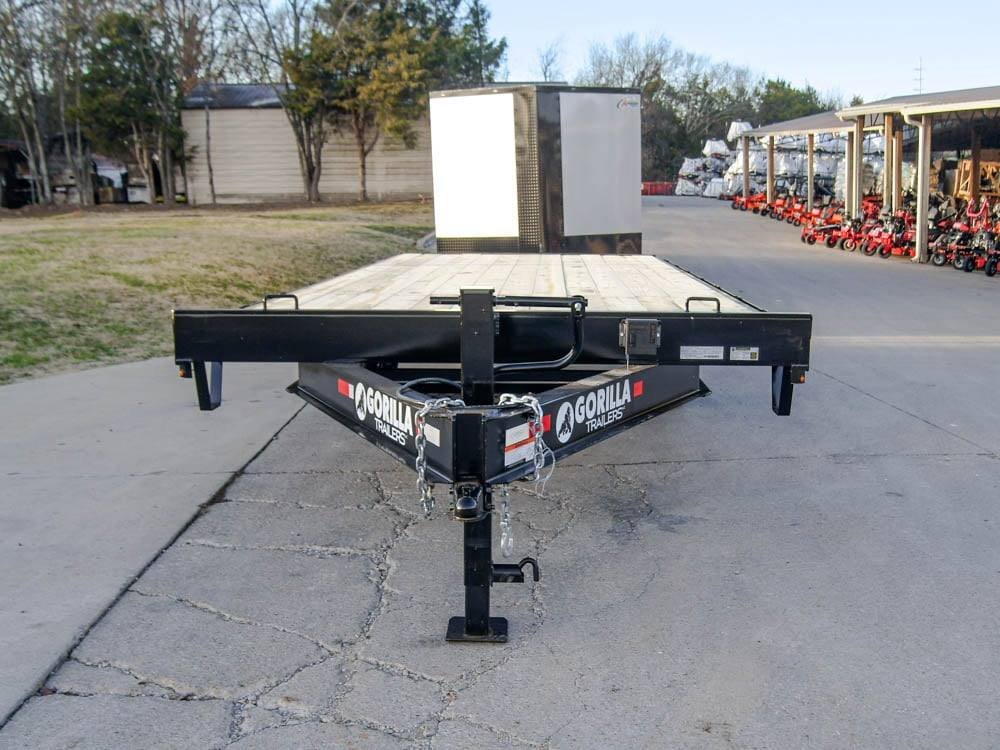

8.5×22 Straight Deckover Trailer – Dual 7K Axles with Slide-Out Ramps

The 8.5×22 Straight Deckover Trailer is designed for demanding equipment, vehicle, and material hauling applications. Built around a rugged 8″ I-beam frame and equipped with dual 7,000 lb greaseable axles, this heavy-duty trailer provides the strength, stability, and versatility needed for professional hauling.

A straight, flat deck combined with heavy-duty slide-out ramps makes loading and unloading equipment simple, while pressure-treated wood flooring, 16″ steel wheels and tires, LED road lights, stake pockets, and a tongue-mounted chain box provide the practical features needed for everyday work.

Key Features

• 8.5×22 Straight Deck: Provides a spacious, flat loading surface for equipment, vehicles, machinery, materials, and other large loads.
• Slide-Out Ramps: Heavy-duty ramps provide convenient access to the deck for loading and unloading and store away when not in use.
• Dual 7,000 lb Greaseable Axles: Two heavy-duty axles provide dependable support for demanding hauling applications, while greaseable fittings simplify routine maintenance.
• 14,000 lb Combined Axle Rating: The two 7,000 lb axles provide a combined axle rating of 14,000 lbs.
• 8″ I-Beam Frame: Rugged I-beam construction provides excellent structural strength and stability for tough working environments.
• 16″ Steel Wheels & Tires: Heavy-duty steel wheels and durable tires provide dependable performance during transport.
• Pressure-Treated Wood Flooring: Provides a strong, durable deck surface designed to withstand demanding hauling applications and outdoor exposure.
• Fully Wired LED Road Lights: Bright LED lighting improves trailer visibility during transport.
• Tongue-Mounted Chain Box: Keeps chains and hauling accessories organized and conveniently accessible.
• Stake Pockets: Positioned along the trailer to provide additional flexibility for securing loads or installing compatible side supports.
• Spare Tire Mount: Provides a dedicated location for mounting a spare tire for added preparedness on the road.
• Breakaway Box: Adds an important safety feature in the event the trailer becomes disconnected from the tow vehicle.

Heavy-Duty Straight Deck Design

The straight deck provides a clean, flat working surface that makes this trailer well suited for transporting construction equipment, machinery, vehicles, building materials, and other large cargo. The deckover configuration provides excellent usable deck space without wheel wells interrupting the loading surface.

Dual 7K Axle Configuration

This trailer is equipped with two 7,000 lb greaseable axles, providing a combined axle rating of 14,000 lbs. Greaseable fittings make routine axle maintenance easier and help support dependable long-term operation.

Note: The 14,000 lb figure represents the combined axle rating. It should not be interpreted as the trailer’s payload capacity or GVWR unless separately specified by the manufacturer.

Slide-Out Loading Ramps

Heavy-duty slide-out ramps make it easier to move compatible equipment and vehicles onto and off the trailer. When loading is complete, the ramps conveniently store away, keeping the deck clear for transport.

Product Specifications

Included Equipment

• Heavy-duty slide-out loading ramps
• Jack
• Adjustable coupler
• Safety chains
• Breakaway box
• Tongue-mounted chain box
• Spare tire mount
• Stake pockets
• Fully wired LED road lights

Built for Demanding Hauling Jobs

With its 8.5×22 straight deck, dual 7K axles, rugged 8″ I-beam frame, pressure-treated wood flooring, and heavy-duty slide-out ramps, this equipment trailer provides a strong and versatile hauling platform for construction equipment, machinery, vehicles, materials, and other demanding loads.
