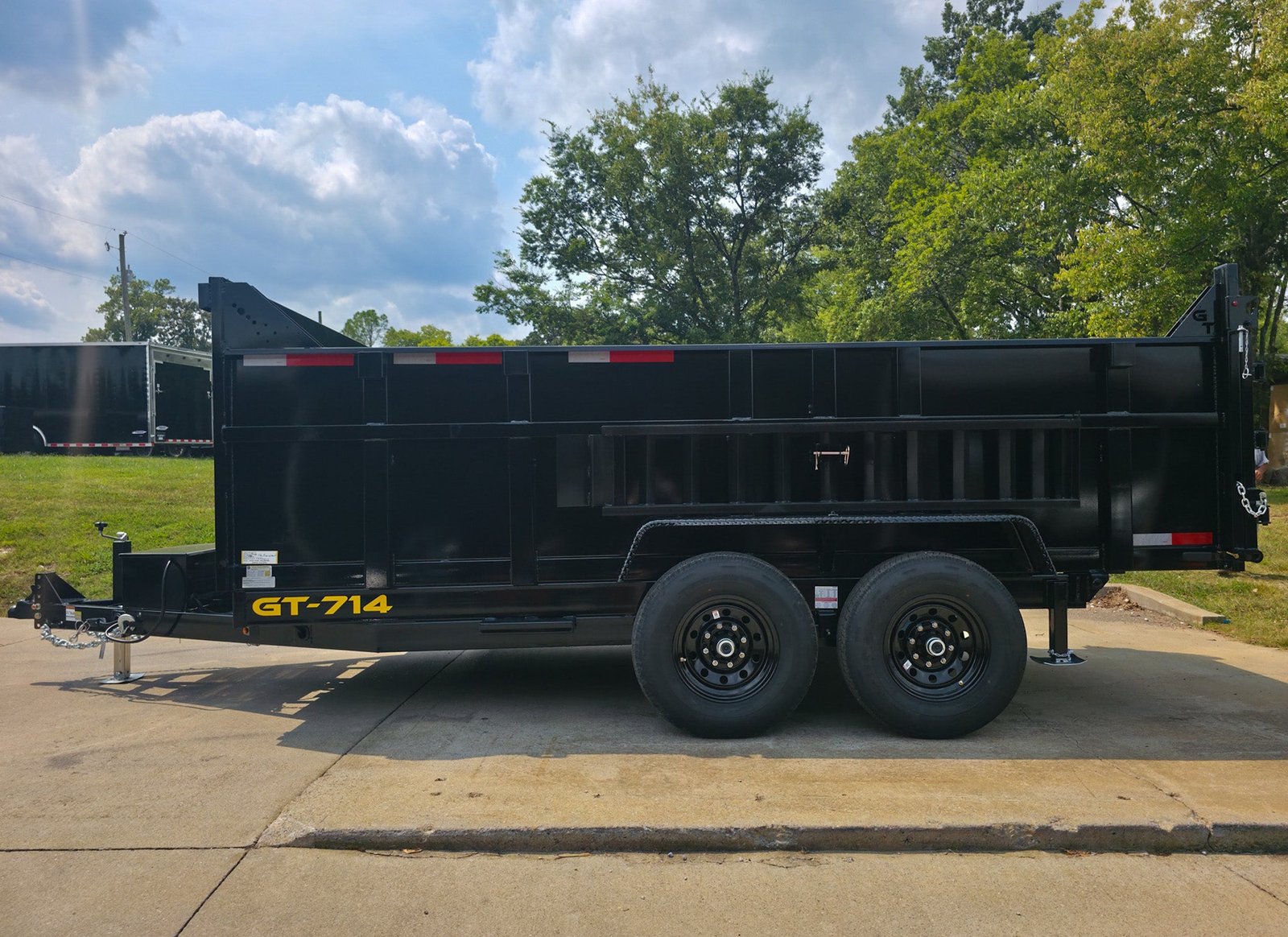

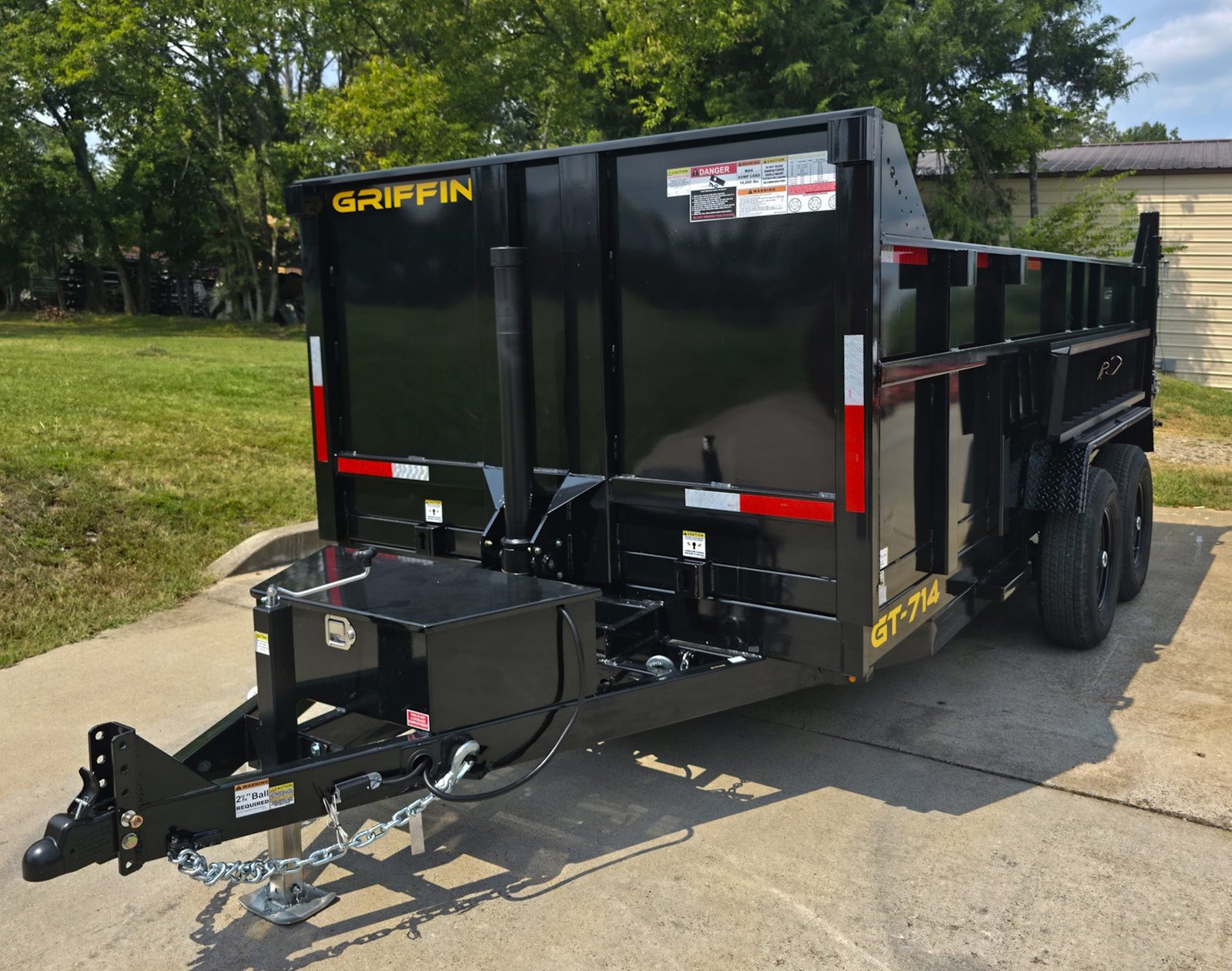

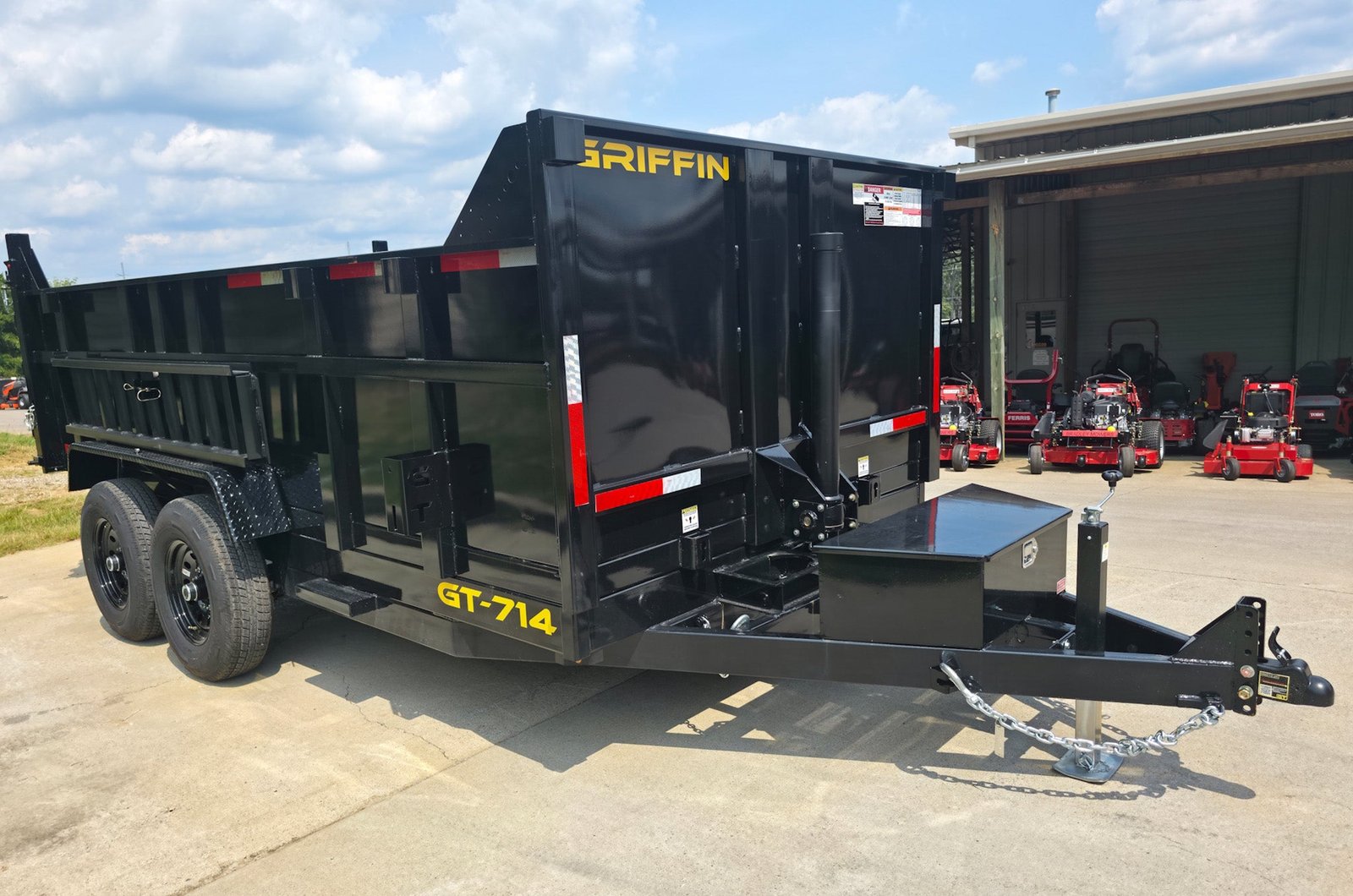

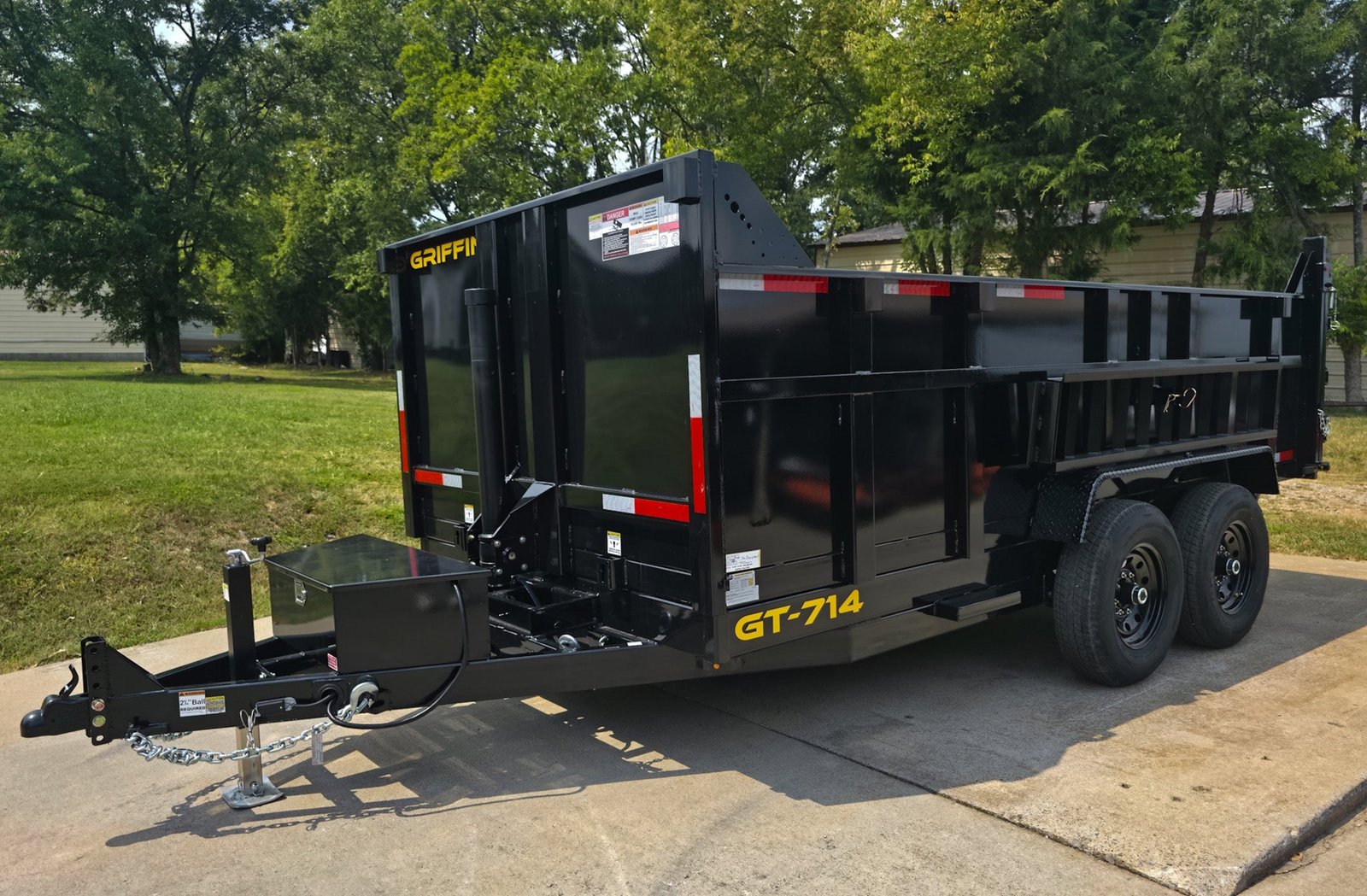

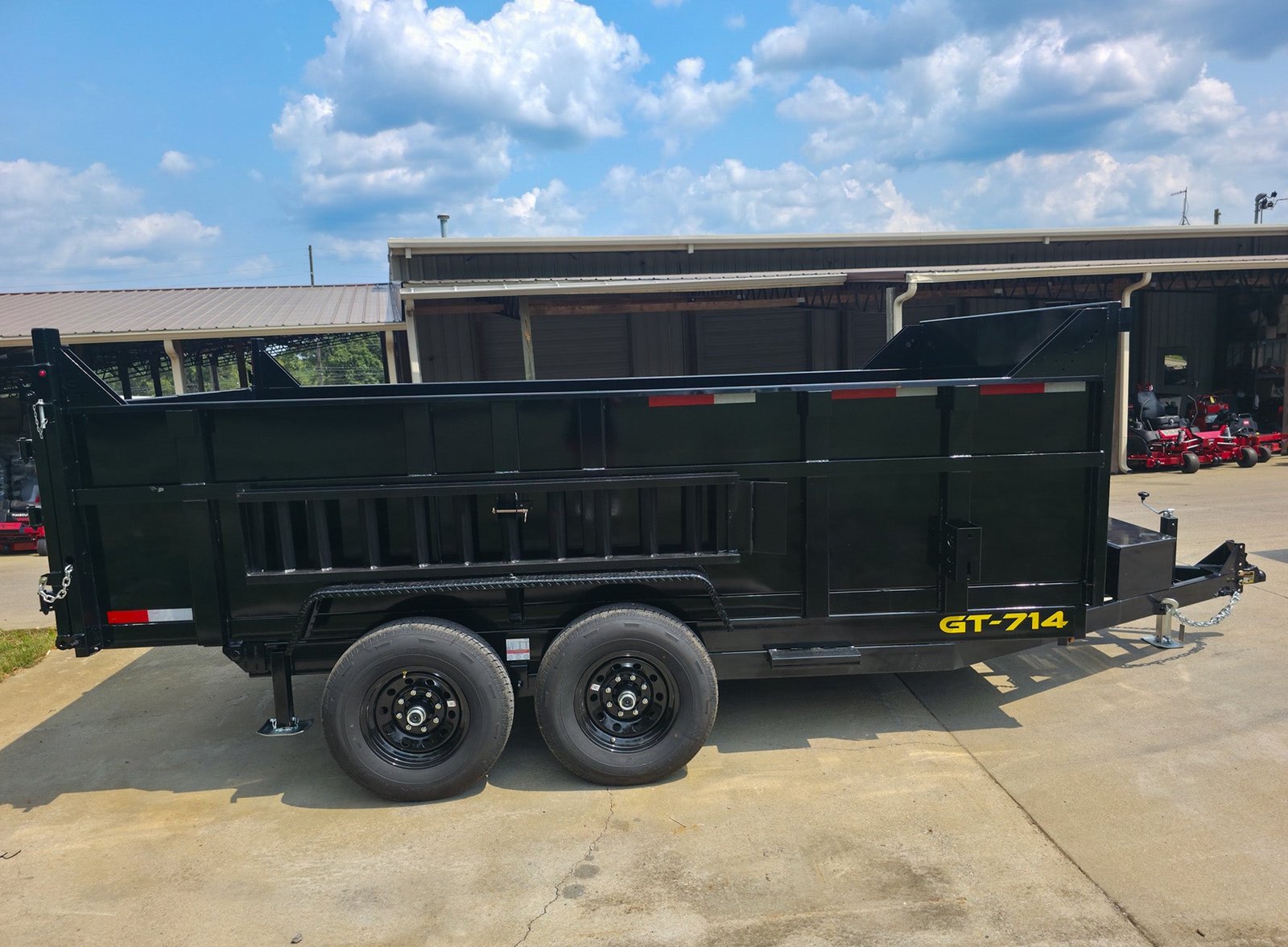

7×14 Telescopic Hydraulic Dump Trailer – 3′ Sides, Dual 7K Axles, 14K GVWR

Built for demanding commercial and professional hauling, the 7×14 Telescopic Hydraulic Dump Trailer combines a 14,000 lb GVWR, dual 7,000 lb axles, a powerful 3-stage telescopic hydraulic lift, and heavy-duty steel construction. With a rated payload of 10,096 lbs, this trailer is designed for hauling and dumping gravel, soil, debris, equipment, landscaping materials, and other heavy loads.

The Low-Pro design provides a lower center of gravity for easier loading and stable towing, while equipment ramps, a two-way barn/spreader gate, integrated D-rings, and stake pockets make the trailer highly versatile for both material and equipment transport.

Key Features

• 7×14 Heavy-Duty Dump Body: Provides a 14-foot bed with 7-foot width and 36-inch-high sides for excellent cargo volume.
• 14,000 lb GVWR: Heavy-duty tandem-axle configuration provides the capacity required for demanding hauling applications.
• 10,096 lb Payload Capacity: Designed to carry substantial loads while maintaining a heavy-duty structural platform.
• 3-Stage Telescopic Hydraulic Lift: Provides powerful and smooth dumping performance with a rated dump capacity of up to 10,000 lbs.
• 12V Hydraulic System: Hydraulic pump produces up to 3,200 PSI with power-up and gravity-down operation.
• Dual 7,000 lb EZ-Lube Axles: Name-brand tandem axles provide dependable load support and simplified routine bearing maintenance.
• Electric Brakes: Provides dependable braking performance and improved towing control under load.
• Equalized Leaf-Spring Suspension: Helps distribute loads between the tandem axles for stable towing performance.
• 10-Gauge Steel Floor & Walls: Heavy-duty smooth steel construction provides durability for demanding material-hauling applications.
• Reinforced Cross Members: 2″ × 3″ cross members positioned 16″ on center reinforce the dump body structure.
• 80″ Equipment Ramps: C-channel fender-mounted ramps provide convenient loading access for compatible equipment and machinery.

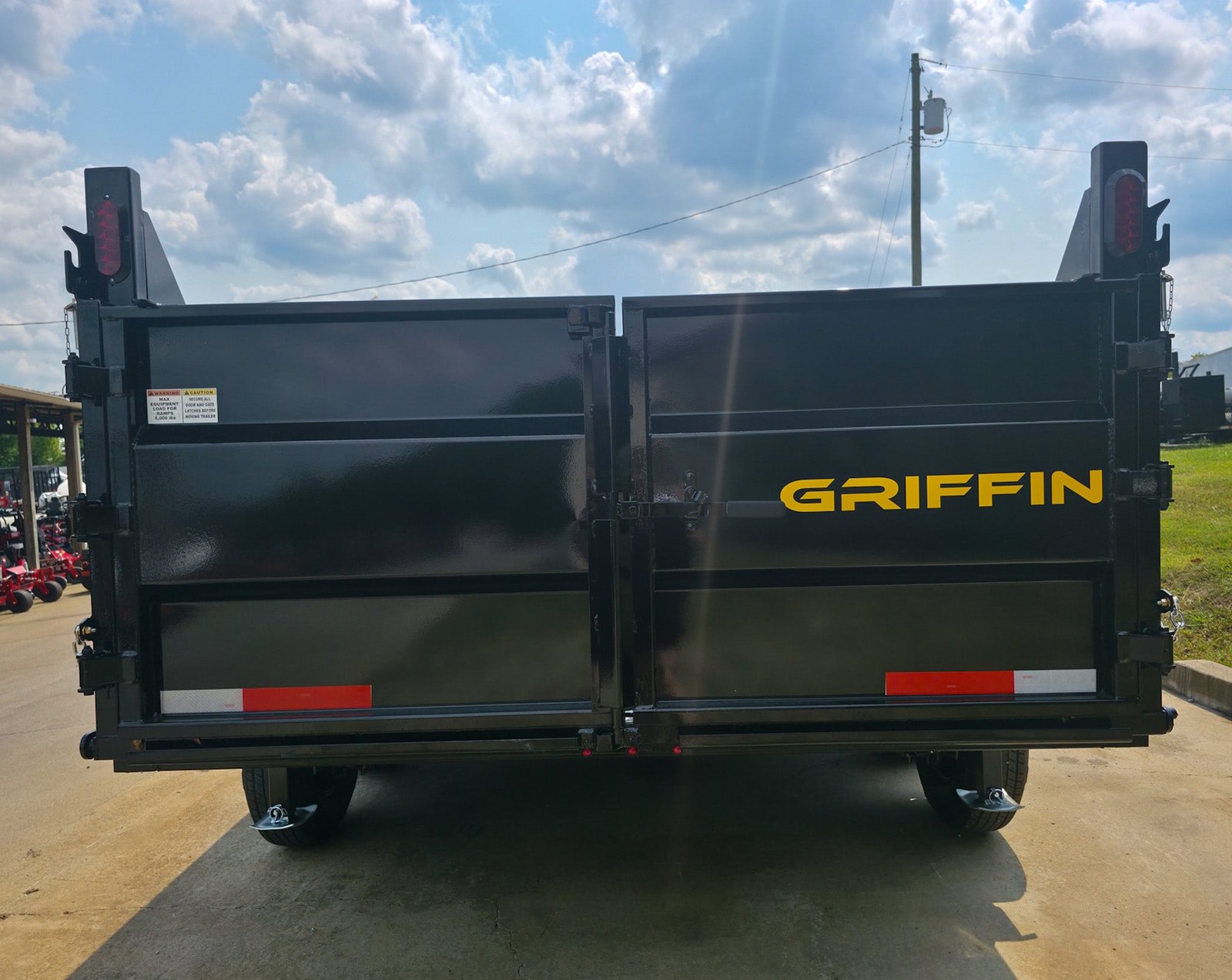

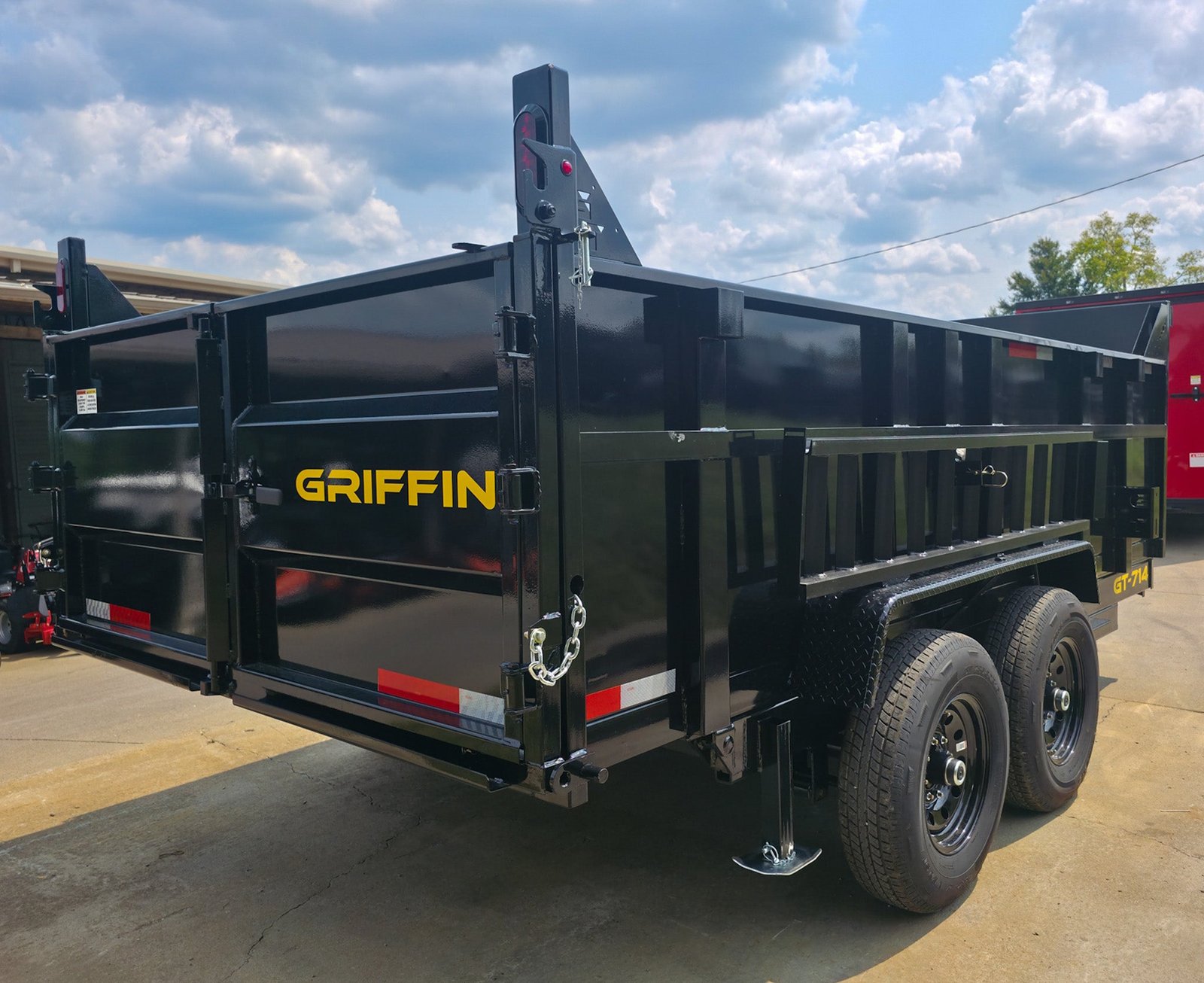

• Two-Way Barn/Spreader Gate: Provides flexible unloading options for different types of materials and jobs.

Cargo & Utility Features

• Five Heavy-Duty D-Rings: Five 5,000 lb rated D-rings are welded into the floor to provide secure cargo tie-down points.
• Stake Pockets: Integrated stake pockets provide additional options for securing and configuring loads.
• Diamond Plate Fenders: 14-gauge formed treadplate fenders help protect the wheels while providing a rugged appearance.
• 7,000 lb Top-Wind Ram Jack: Heavy-duty jack makes trailer positioning and hitch adjustment easier.
• 2-5/16″ Adjustable Ram Coupler: Provides a strong and adjustable connection to a properly equipped tow vehicle.
• Chain Box: Provides convenient storage and organization for towing accessories.
• Spare Tire Mount: Conveniently positioned for quick access when needed.

Wheels, Lighting & Finish

• 16″ Kenda Radial Tires: Heavy-duty radial tires provide dependable road performance and load support.
• Black Powder-Coated Wheels: Durable wheels provide additional corrosion protection and complement the trailer’s professional appearance.
• Optronics LED Lighting: Fully wired amber and red LED lighting provides excellent road visibility.
• 7-Pin Round Connector: Provides the electrical connection required for trailer lighting and braking functions.
• 3-Piece Wiring Harness: Plug-and-play harness design helps simplify electrical maintenance and servicing.
• Sherwin-Williams Powder-Coated Finish: High-gloss black powder coating helps protect the trailer against corrosion, chips, abrasion, and demanding working conditions.

Specifications

Heavy-Duty Performance for Demanding Jobs

Whether you’re hauling construction debris, landscaping materials, gravel, soil, equipment, or other heavy cargo, this 7×14 telescopic dump trailer delivers the capacity, hydraulic power, loading flexibility, and rugged construction required for serious work.
