Description

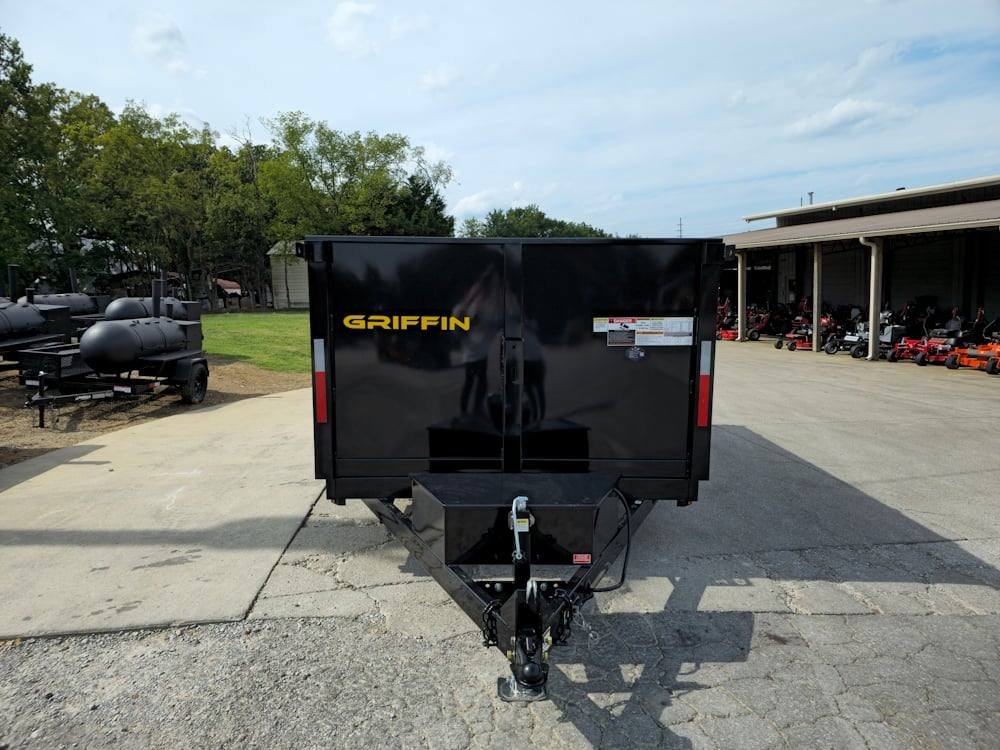

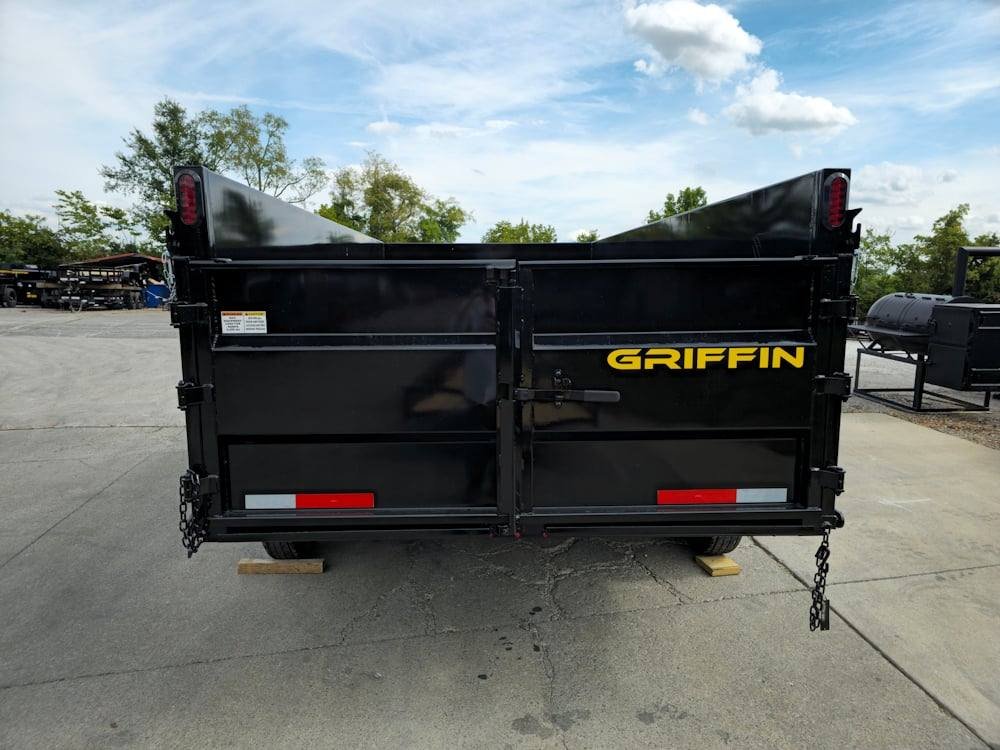

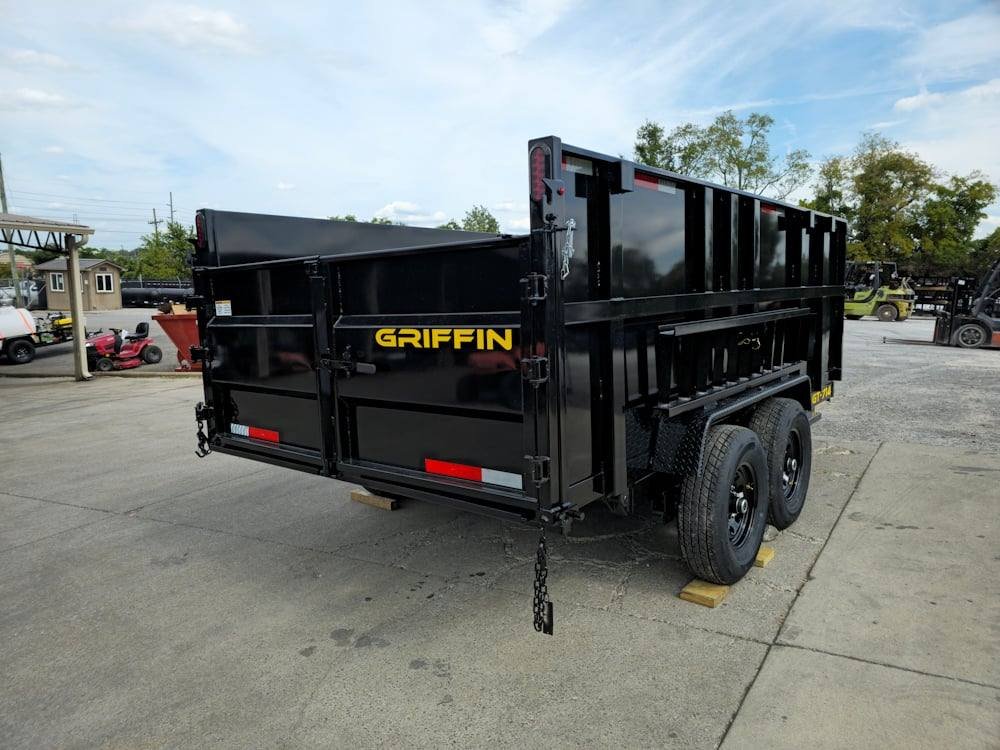

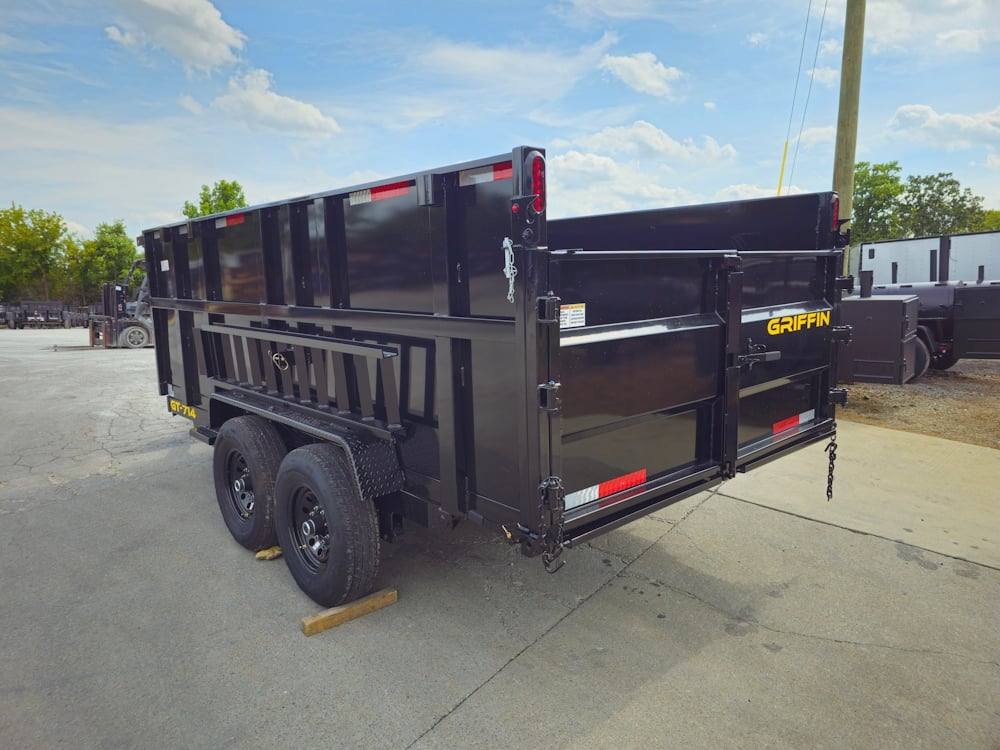

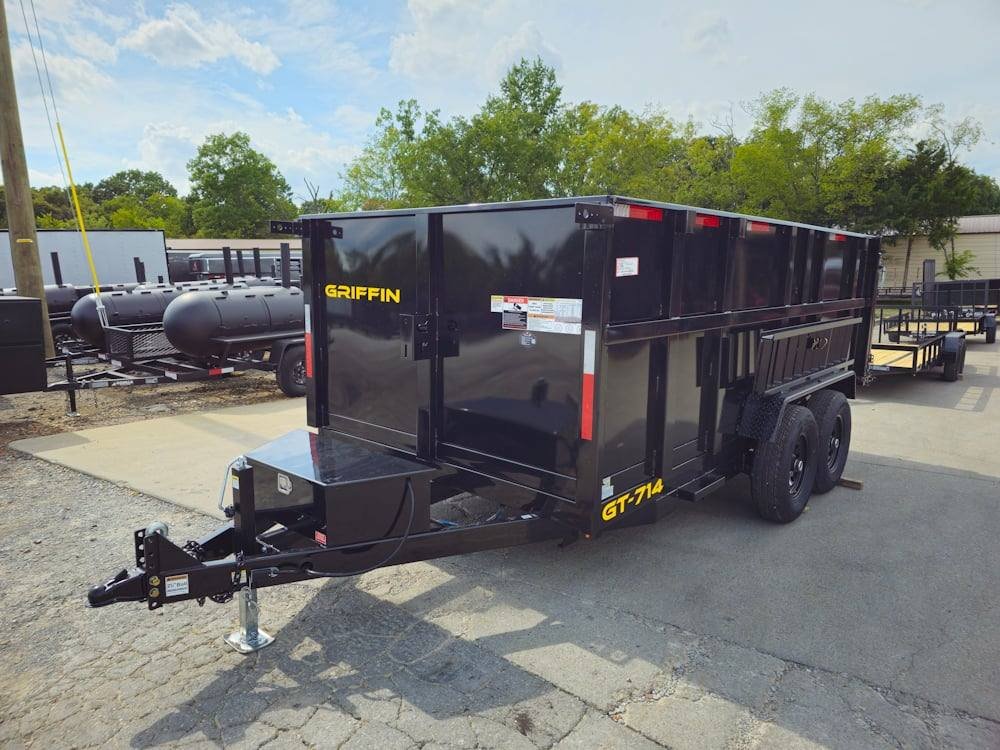

7×14 Hydraulic Dump Trailer with 4ft Sides – Dual 7K Axles, 14K GVWR

The 7×14 Hydraulic Dump Trailer with 4ft Sides is a high-capacity, commercial-grade hauling solution built for demanding construction, landscaping, demolition, property maintenance, and equipment transport applications. With 48-inch steel sides, dual 7,000 lb axles, a 14,000 lb GVWR, and a 10,096 lb payload rating, it provides the capacity needed to move heavy or bulky loads efficiently.

Its low-profile configuration makes loading easier while providing a lower center of gravity for stable towing. A powerful hydraulic dumping system, equipment ramps, integrated tarp system, spreader/barn gate, and multiple tie-down points make this trailer ready for demanding everyday work.

Key Features

• 7×14 Heavy-Duty Dump Body: Spacious cargo area provides excellent capacity for gravel, soil, debris, landscaping materials, equipment, and other compatible loads.
• 48″ High Steel Sides: Extra-tall 4-foot sides provide significantly increased volume for bulky materials and debris.
• 14,000 lb GVWR: Heavy-duty tandem-axle configuration is designed for demanding commercial hauling applications.
• 10,096 lb Payload Capacity: Provides substantial usable carrying capacity for compatible materials and equipment.
• 10,000 lb Dump Capacity: Hydraulic dumping system is rated to handle demanding unloading operations.
• Dual Hydraulic Cylinders: Two 3″ × 30″ hydraulic cylinders provide powerful and dependable dump operation.
• 12V DC Hydraulic Pump: Powered by an Interstate deep-cycle marine battery for reliable hydraulic performance.
• Dual 7,000 lb EZ-Lube Axles: Heavy-duty tandem axles provide dependable load support with convenient bearing maintenance.
• Leaf-Spring Suspension: Provides a durable suspension system designed for demanding trailer applications.
• Low-Profile Design: A 29-inch floor height helps simplify loading while contributing to a lower center of gravity.

Heavy-Duty Steel Construction

• 10-Gauge Smooth Steel: Heavy-duty steel walls provide durability for demanding material-hauling applications.
• Reinforced Crossmembers: 2″ × 3″ structural crossmembers spaced 16″ on center reinforce the trailer body.
• 2″ × 5″ Tubular Tongue: Heavy-duty tongue construction provides a strong connection between the trailer and tow vehicle.
• Treadplate Fenders: Rugged fenders help protect the wheels against debris and jobsite impacts.
• High-Gloss Powder-Coated Finish: Provides additional resistance against corrosion, chips, abrasion, and demanding working conditions.
• Galvanized Axle Components: Helps provide additional corrosion resistance and long-term durability.

Loading & Cargo Management

• 80″ C-Channel Equipment Ramps: Fender-mounted ramps provide convenient loading access for compatible equipment and machinery.
• 2-Way Spreader/Barn Gate: Provides flexible unloading options for bulk materials and general cargo.
• Five 5,000 lb D-Rings: Welded tie-down points provide secure attachment locations for compatible equipment and cargo.
• Integrated Tarp System: Helps cover and contain compatible loads during transportation.
• Lockable Control Box: Provides convenient protected access to hydraulic controls and related components.

Towing, Electrical & Safety Equipment

• 16″ Radial Tires: Heavy-duty tires provide dependable road performance and load support.
• 2-5/16″ Adjustable Coupler: Provides a strong, adjustable connection to a properly equipped tow vehicle.
• 7,000 lb Drop-Leg Jack: Heavy-duty jack simplifies trailer positioning and hitching.
• LED Lighting: Provides excellent visibility and dependable trailer lighting.
• 7-Pin Round Connector: Provides the electrical connection for compatible trailer lighting and braking systems.

Product Specifications

Built for High-Volume Commercial Hauling

With its 4-foot sides, 14,000 lb GVWR, 10,096 lb payload, dual hydraulic cylinders, equipment ramps, and integrated tarp system, this 7×14 dump trailer is an excellent solution for contractors, landscapers, demolition crews, property-maintenance professionals, and other operators who need serious hauling capacity.
