Description

7×14 Gooseneck Hydraulic Dump Trailer with 4ft Sides – Dual 7K Axles

The 7×14 Gooseneck Hydraulic Dump Trailer with 4ft Sides is a heavy-duty hauling solution built for demanding construction, landscaping, agricultural, property-maintenance, and equipment-transport applications. Its spacious 14′ × 7′ dump box with 48-inch sides provides excellent volume for transporting soil, gravel, mulch, debris, equipment, and other compatible materials.

Equipped with dual 7,000 lb EZ-Lube axles, a powerful 12V hydraulic system, dual hydraulic cylinders, heavy-duty steel construction, equipment ramps, and a gooseneck towing configuration, this trailer is designed for serious commercial workloads.

Key Features

• 7×14 Heavy-Duty Dump Box: Measures approximately 14′ long × 7′ wide for substantial cargo capacity.
• 48″ High Sides: Four-foot sidewalls provide additional volume for bulky materials such as mulch, debris, soil, and landscaping materials.

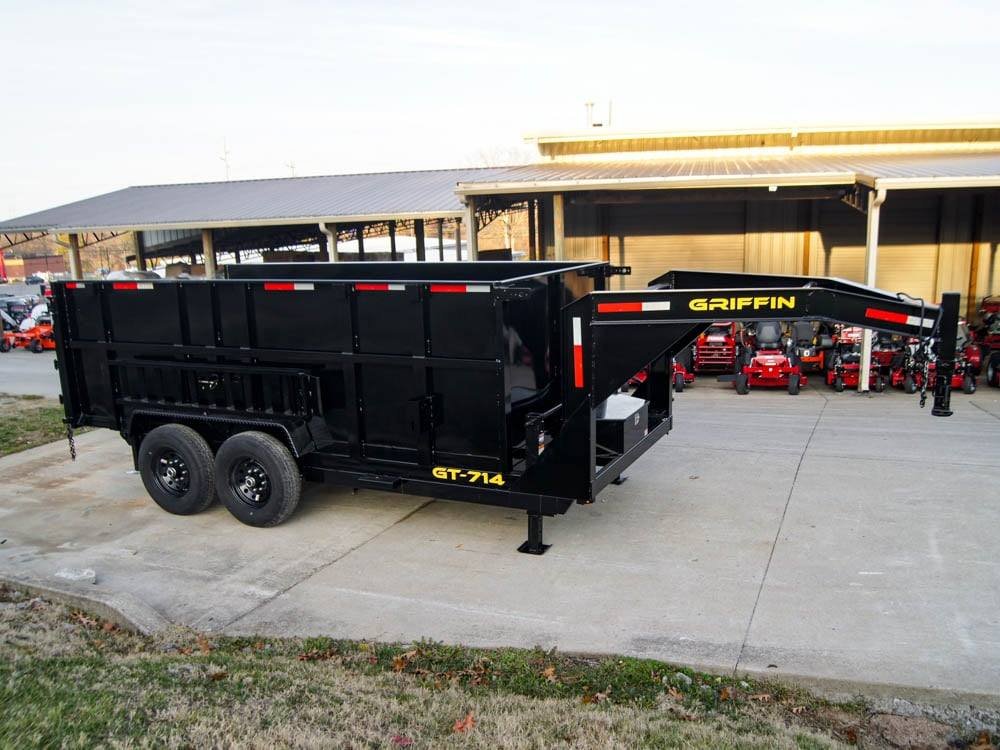

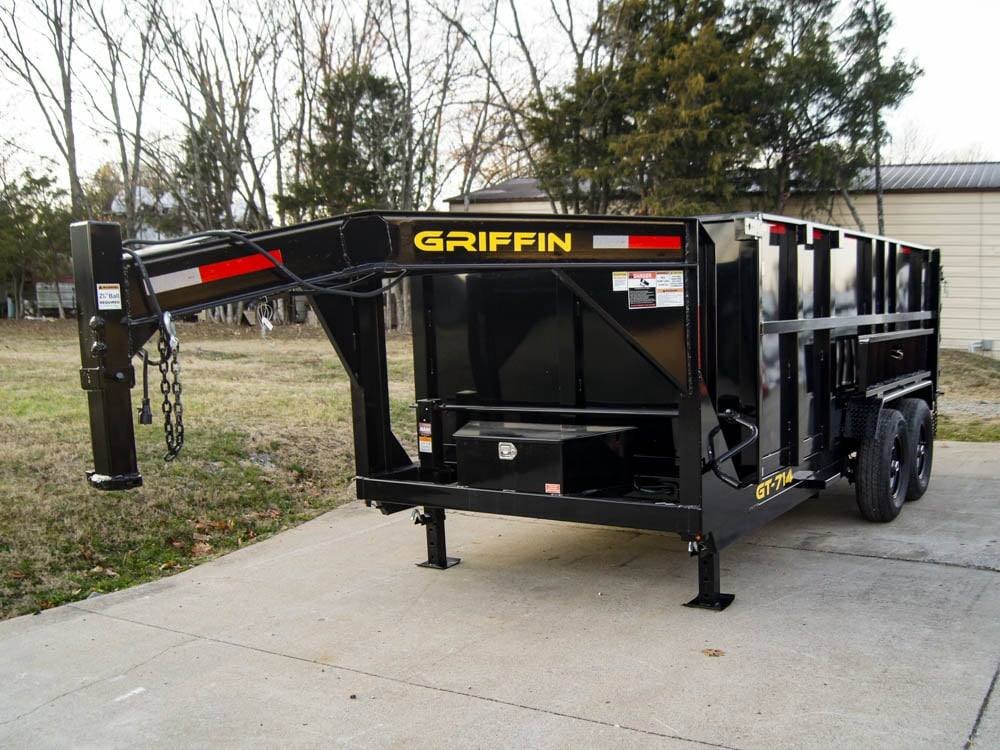

• Gooseneck Configuration: Designed for connection to a properly equipped gooseneck tow vehicle, providing a heavy-duty towing platform for demanding applications.
• Dual 7,000 lb EZ-Lube Axles: Tandem heavy-duty axles provide a combined axle rating of 14,000 lbs and convenient bearing-maintenance access.
• Galvanized Axle Components: Provides additional protection against corrosion and demanding road conditions.
• Equalized Suspension: Helps distribute loads between the tandem axles for stable and controlled towing.
• Low-Profile Design: Provides a lower loading position and helps maintain a lower center of gravity during transport.

Powerful Hydraulic Dump System

• 12V DC Hydraulic Pump: Provides dependable electric-hydraulic operation without requiring an external hydraulic source.
• 3,200 PSI Lift Pressure: Hydraulic system delivers substantial lifting pressure for demanding dumping applications.
• 1,500 PSI Lowering Pressure: Provides controlled hydraulic lowering operation.
• Dual 3″ × 30″ Hydraulic Cylinders: Heavy-duty twin-cylinder configuration provides strong and balanced lifting performance.
• Up to 10,000 lb Dump Capacity: Hydraulic system is designed to dump compatible loads up to the stated capacity.
• Interstate Deep-Cycle Battery: Provides dedicated power for hydraulic operation.
• Lockable Control Box: Front-access enclosure protects the hydraulic controls and electrical components while keeping them conveniently accessible.

Heavy-Duty Steel Construction

• 10-Gauge Steel Floor & Walls: Smooth heavy-duty steel construction is designed to withstand demanding material-hauling applications.
• 2″ × 4″ Stake Pockets: Provides additional cargo-management and attachment options.
• 2″ × 12″ Gussets: Reinforced structural components provide additional strength in critical areas.
• 14-Gauge Treadplate Fenders: Rugged steel fenders help protect the wheels from debris and jobsite impacts.
• High-Gloss Powder-Coated Finish: Durable coating helps protect against corrosion, chips, abrasion, and demanding outdoor conditions.

Loading & Cargo Management

• 80″ C-Channel Equipment Ramps: Fender-mounted ramps provide convenient drive-on loading for compatible equipment and machinery.

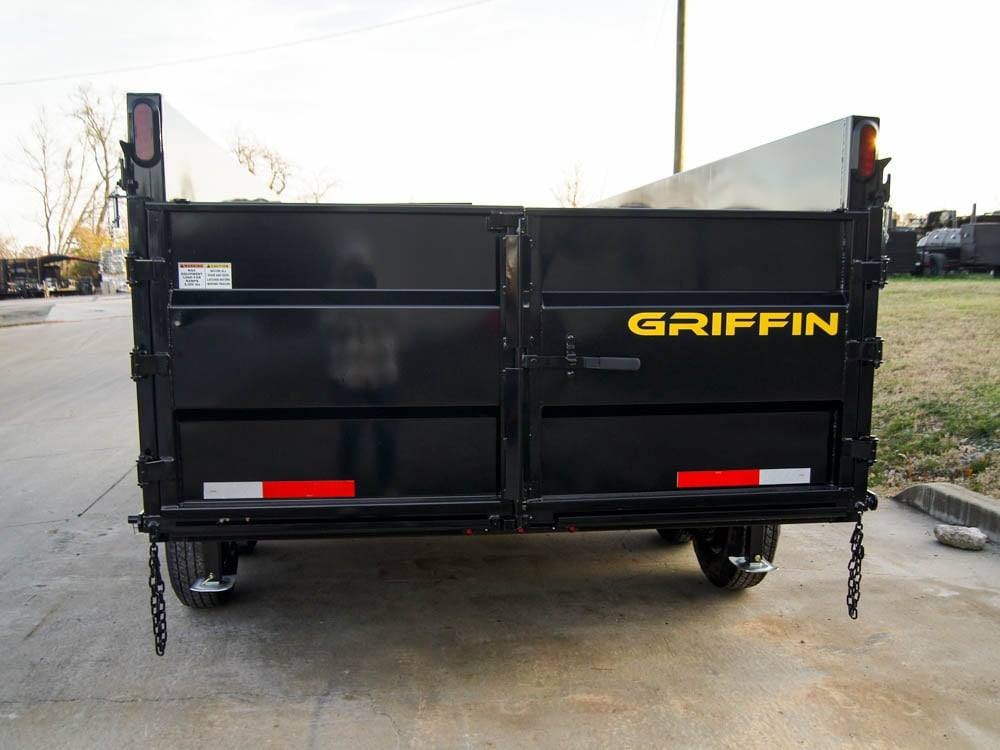

• 2-Way Combination Rear Gate: Provides flexible unloading configurations for equipment, bulk materials, and general cargo.
• Five 5,000 lb D-Rings: Heavy-duty welded tie-down points provide secure locations for compatible equipment and cargo restraints.

Towing, Electrical & Safety Features

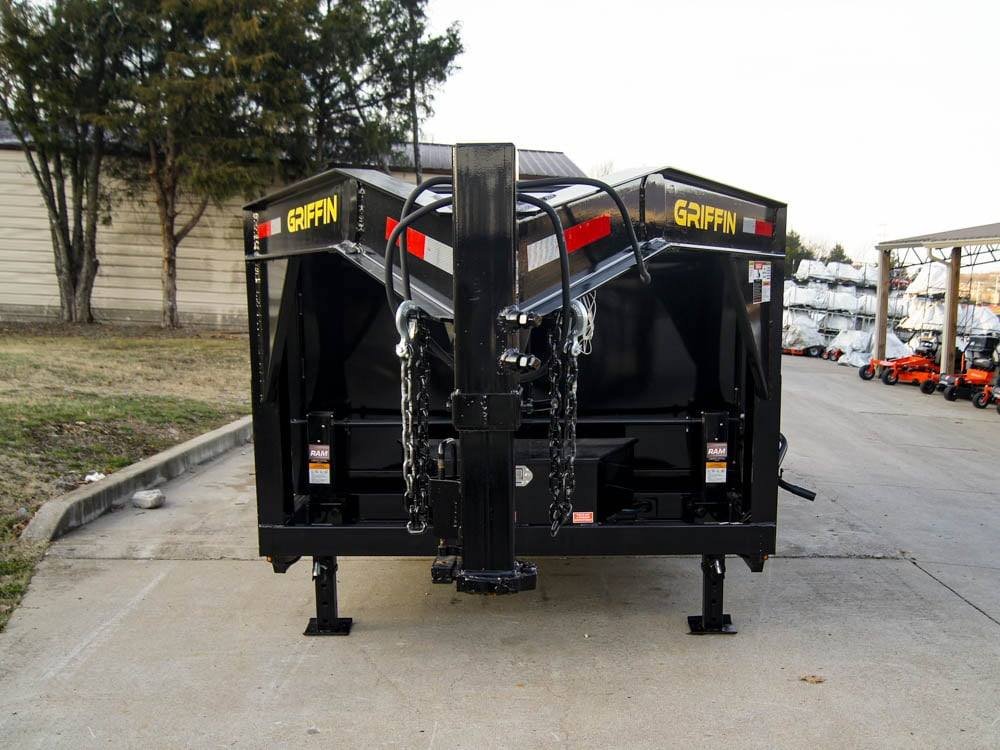

• 2-5/16″ Adjustable Coupler: Heavy-duty adjustable coupling system provides flexibility when connecting to a compatible towing setup.
• 12,000 lb Jack: Heavy-duty jack supports convenient trailer positioning, hitching, and unhitching.
• Heavy-Duty Safety Chains: Safety chains are rated at approximately 11,700 lbs for an additional towing safety connection.
• LED Lighting: Amber and red LED lights provide dependable road visibility.
• 3-Piece Wiring Harness: Plug-and-play wiring configuration simplifies electrical servicing and maintenance.

Product Specifications

Built for Demanding Commercial Hauling

With its 4-foot sides, tandem 7K axles, dual hydraulic cylinders, 10,000 lb dump capability, equipment ramps, and heavy-duty steel construction, this 7×14 gooseneck dump trailer is well suited for contractors, landscapers, agricultural operations, property-maintenance crews, and other demanding hauling applications.

Important: The combined 14,000 lb axle rating and 10,000 lb stated dump capacity should not be interpreted as the trailer’s payload capacity or GVWR. Always follow the trailer’s certified VIN/data plate ratings and applicable towing limits when loading and operating the trailer.
